OSS316-D5
omnistreams
intel
OSS316-D5 3U 16 BAYS 3.5" HDD 12G SAS DUAL XEON SP 800W HRP
Key Features
- Versatile 3U Storage chassis with optimal cooling for high end server

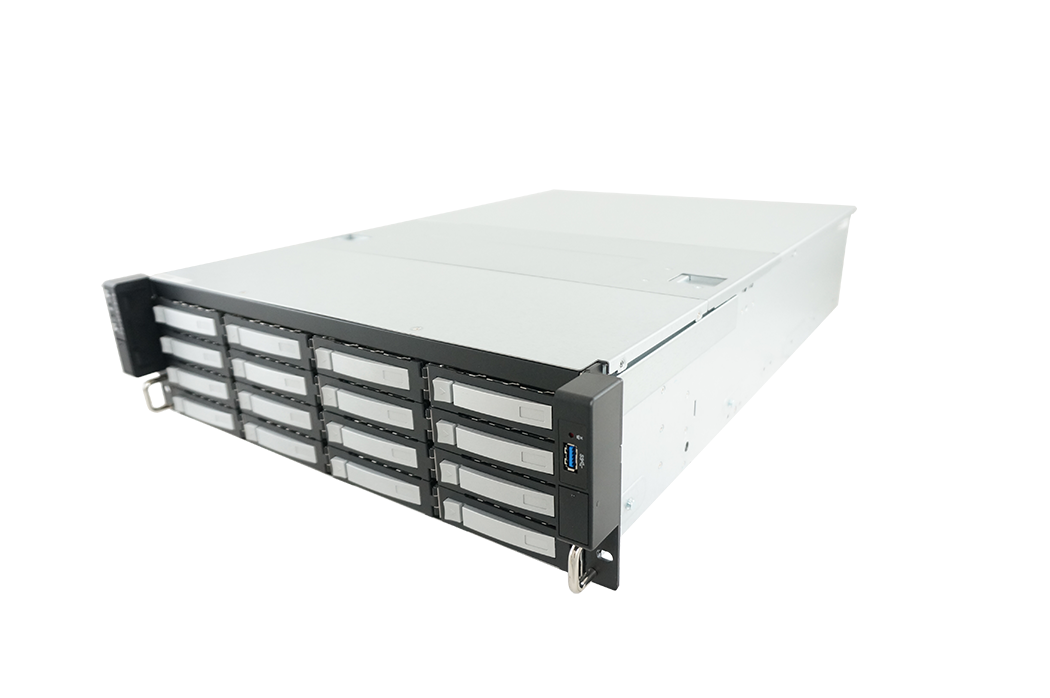

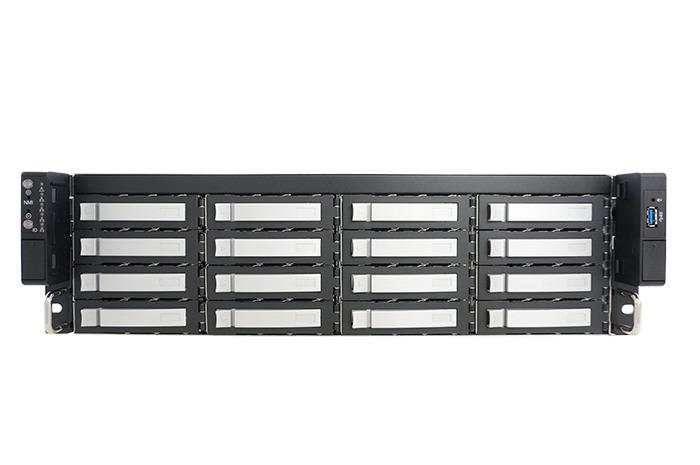

- 16x Hot Swap Tray-less 3.5″ HDD 12G SAS or SATA drive bays
- Optional 2,4, or 6 rear hot -swap 2.5″ SSD 7mm drive bays
- High efficiency Platinum redundant PSU 800W or 1200W
- Supports Intel Xeon ATX, SSI CEB, or 13″ EEB motherboards
System
| Processor | Supports Dual Intel® Xeon® SP (Skylake) up to 205W TDP socket LGA3647 |
|---|---|
| System Chipset | Intel® C621 chipset |
| System Memory | Supports 12x DDR4 RDIMM/LRDIMM (3DS) 2133/2400/2666 MT/s |
| Storage | 36 ports 12Gb/s SAS expander with 3 SFF8643 ports |
| Drive Bays | 16x SAS/SATA 12G/6G hot -swap 3.5" drive bays, 2x internal OS 2.5", Optional 2/4/6/8x rear tool-less 2.5" 7mm bay |
| Cooling | 4x 80mm fans |
I/O
| Expansion | Supports a total of 7 low profile expansion slots, 4x PCIe3 x16, 3x PCIe3 x8 |
|---|
Environment
| Operating Temperature | 0°C ~ 35°C |
|---|---|
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
| HTS Code | 8473 30 5100 |
| ECCN | 4A994 |
| Compliance | CE, FCC Class A, RoHS 6/6 compliant |
Physical
| Dimensions (W x H x D) | System: 26"x19"x5.25" (DxWxH) Packaging: 36.6“x 24.8"x14.6"(LxWxH) |
|---|---|
| Weights | Gross Weight: 37.5 KG/ 82.5lbs Net 15.9KG/35lbs |
Downloads
| Data Sheet | DS_OSS316-D5_E |
|---|---|
| BIOS | S7100GM2NR_v100 S7100GM2NR-BMC_v100 |
| AVL | OSS212L-316-424-D5-AVL |
| Product Brief | PB_OmniStreams_Intel |
| Install Guide | OSS316-D5-Quick-Guide-v1 |
