OSS224-D5
omnistreams
intel

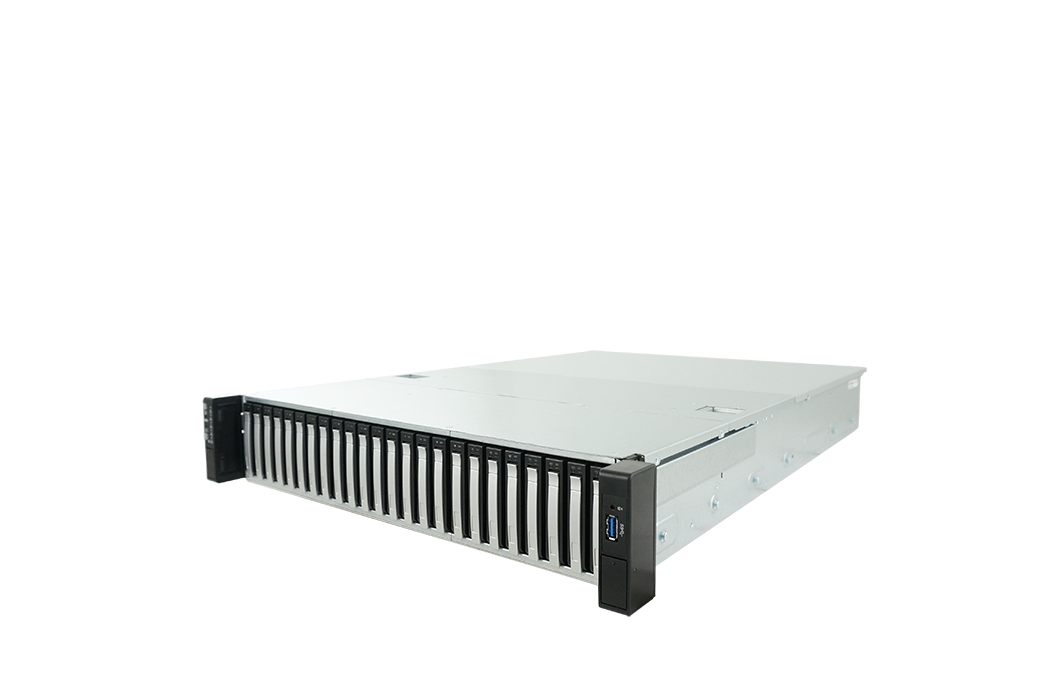

OSS224-D5 2U 24 BAYS 2.5" 12G SAS DUAL XEON SP 800W HRP
Key Features
- 2U 26 inch in depth storage appliance server chassis

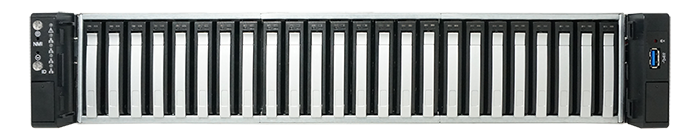

- 24 Tool-less Hot Swap 2.5″ 12G SAS/SATA drive bays & two 2.5″ internal bays
- Supports Intel® Xeon SP ATX, 10.5″ SSI CEB or 13″ EEB motherboards
- 7 low profile PCIe slots
- High efficiency platinum 800/1200W redundant power supply
System
| Processor | Supports Dual Intel® Xeon® SP (Skylake) up to 205W TDP socket LGA3647 |
|---|---|
| System Chipset | Intel® C621 chipset |
| System Memory | Supports 12x DDR4 RDIMM/LRDIMM (3DS) 2133/2400/2666 MT/s |
| Storage | 36 ports 12Gb/s SAS expander with 3 SFF8643 ports |
| Drive Bays | 24 SAS/SATA 12G/6G tool-less hot-swap 2.5" bays, 2x internal OS 2.5" drive bay, Optional 2x Rear tool-less 2.5" 7mm bays |
| Cooling | 3 x 80mm and 2x 40mm easy swap PWM fans |
I/O

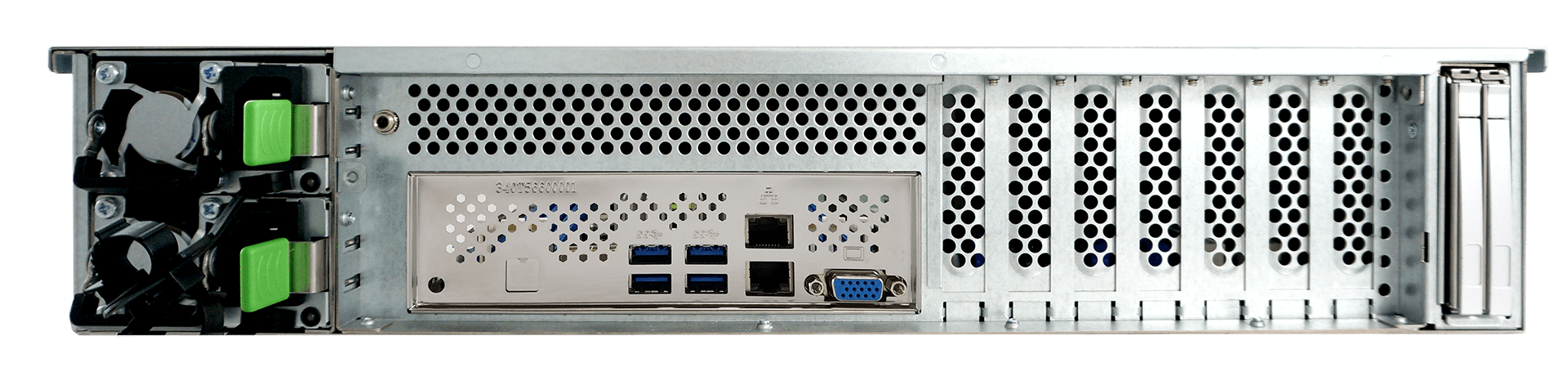

| Expansion | Supports a total of 7 low profile expansion slots; 4x PCIe3 x16 for 4 GPU cards, 3x PCIe3 x8 |
|---|
Environment
| Operating Temperature | 0°C ~ 35°C |
|---|---|
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
| HTS Code | 8473 30 5100 |
| ECCN | 4A994 |
| Compliance | CE, FCC Class A, RoHS 6/6 compliant |
Physical
| Dimensions (W x H x D) | System: 26"x19"x3.5" (DxWxH) Packaging: 17“x25.2"x13.8"(LxWxH) palletized |
|---|---|
| Weights | Gross: 23KG/50lbs Net: 17KG/37.4lbs |
Downloads
| Data Sheet | DS_OSS224-D5_E |
|---|---|
| BIOS | S7100GM2NR_v100 S7100GM2NR-BMC_v100 |
| AVL | OSS224-D5-AVL |
| Product Brief | PB_OmniStreams_Intel |
| Install Guide | OSS224-D5-Quick-Guide-v1 |
