FlacheSAN2V-U5

flachestreams intel

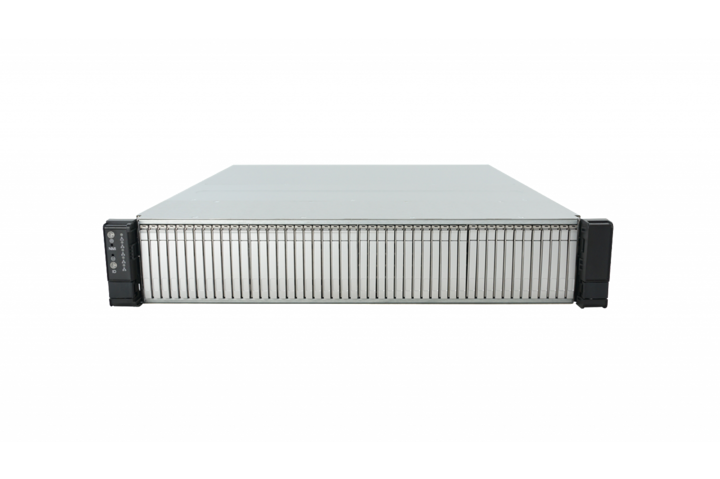

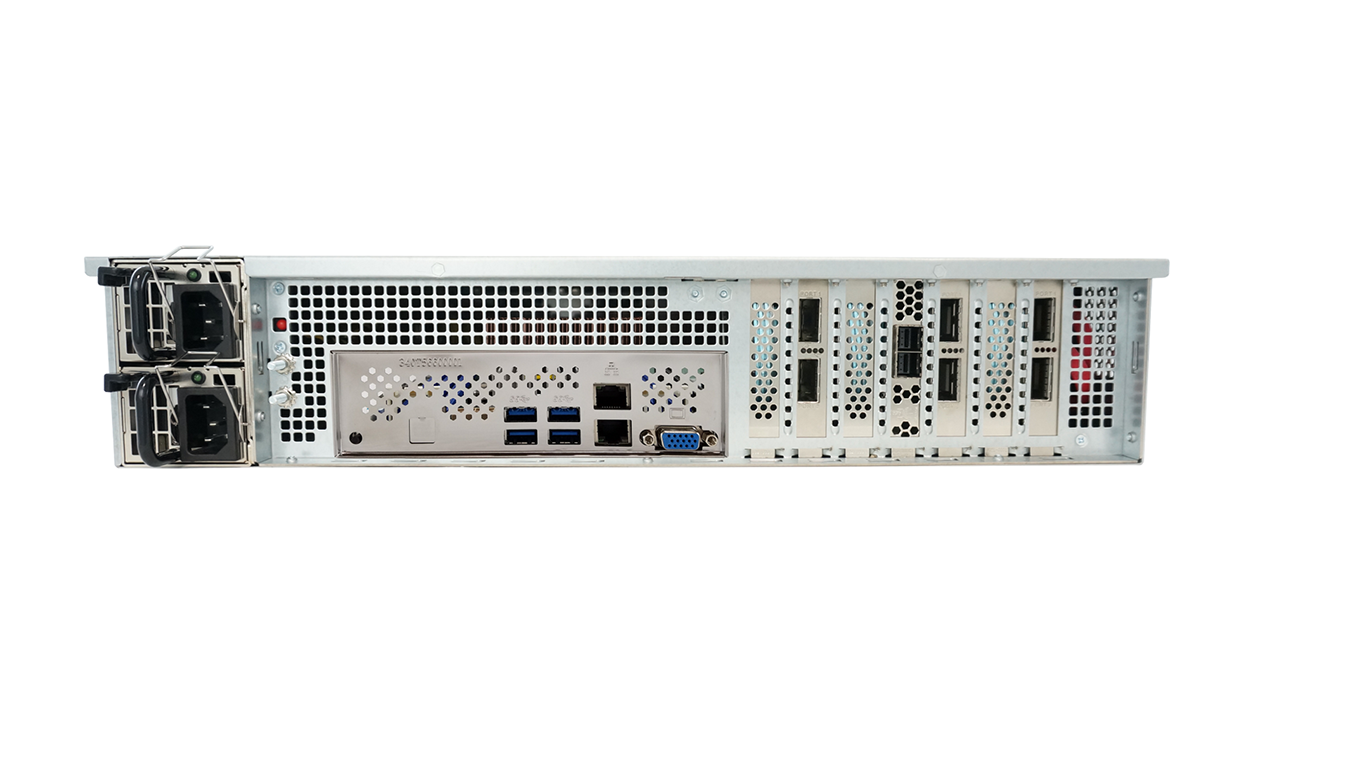

FlacheSAN2V-U5 2U 48 BAYS 7MM 12G SAS/SATA SSD SINGLE XEON SP LOW PROFILE

Key Features

  • Flash server supports Single Intel® Xeon® SP Skylake up to 1TB DDR4
  • Front hot-swap 48x 2.5” 7mm and 2 internal 2.5” 15mm for OS drives
  • Up to 18GB/s (128Gbps) seq. read and up to 1.4M IOPS 4KB random read
  • Supports up to 7x Low Profile MD2 PCIe Expansion slots
  • High efficiency redundant power supplies
          Contact us about this product Download data sheet
          System
          ProcessorSupports UP Intel® Xeon® SP Skylake up to 165W TDP socket LGA3647
          System ChipsetIntel® C621 chipset
          System MemorySupports 8x DDR4 ECC RDIMM/LRDIMM 2133/2400/2666 MT/s
          Storage4x 6G/12G SAS HBA/RAID controllers by using available PCIe slots
          Drive Bays48x front hot-swap 2.5" 7mm 6G SATA drive bays; 2x internal .5" 7 or 15mm 6G SATA bays
          Cooling4x 80mm high speed fans
          I/O
          ExpansionSupports up to total of 7 PCIe slots
          4 PCIe3 x8
          1 PCIe3x16
          1 PCIe3 x4 (in x8 slot)
          Environment
          Operating Temperature0°C ~ 35°C
          Storage Temperature-20°C ~ 70°C
          Relative Humidity5% ~ 95% relative humidity, non-condensing
          HTS Code8473 30 5100
          ECCN4A994
          ComplianceCE, FCC Class A, RoHS 6/6 compliant
          Physical
          Dimensions (W x H x D)System: 26"x19"x3.5" (LxWxH) Packaging: 36"x 24.5"x10.5"(LxWxH)
          WeightsGross: 25KG/55LBS; Net: 21.36KG/46LBS
