FlacheSAN2N12C-D5

flachestreams intel

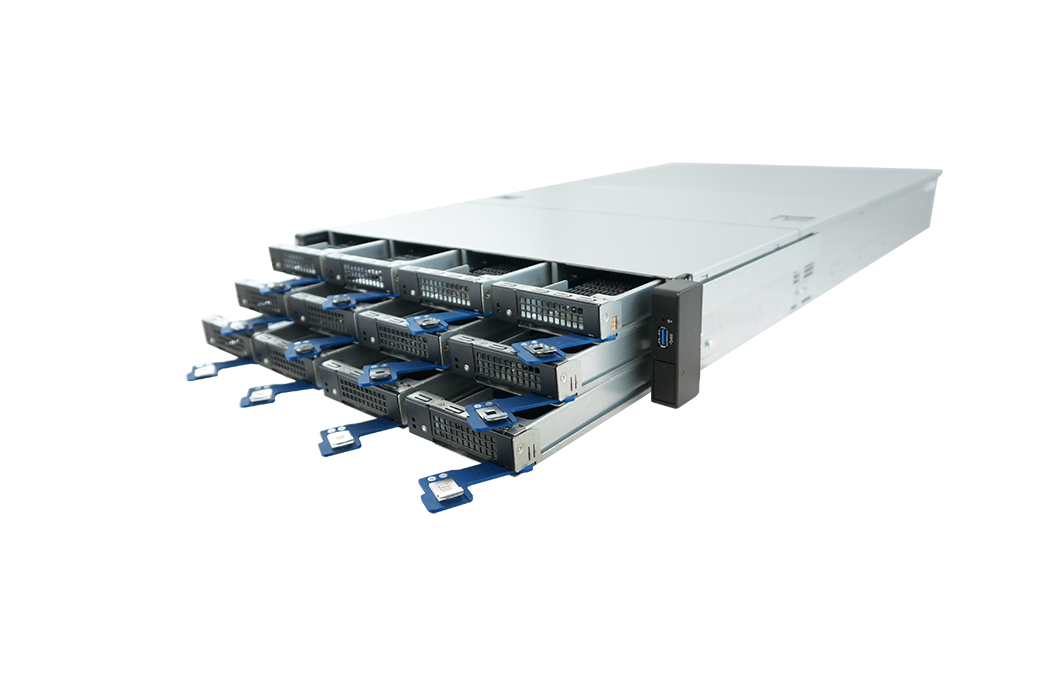

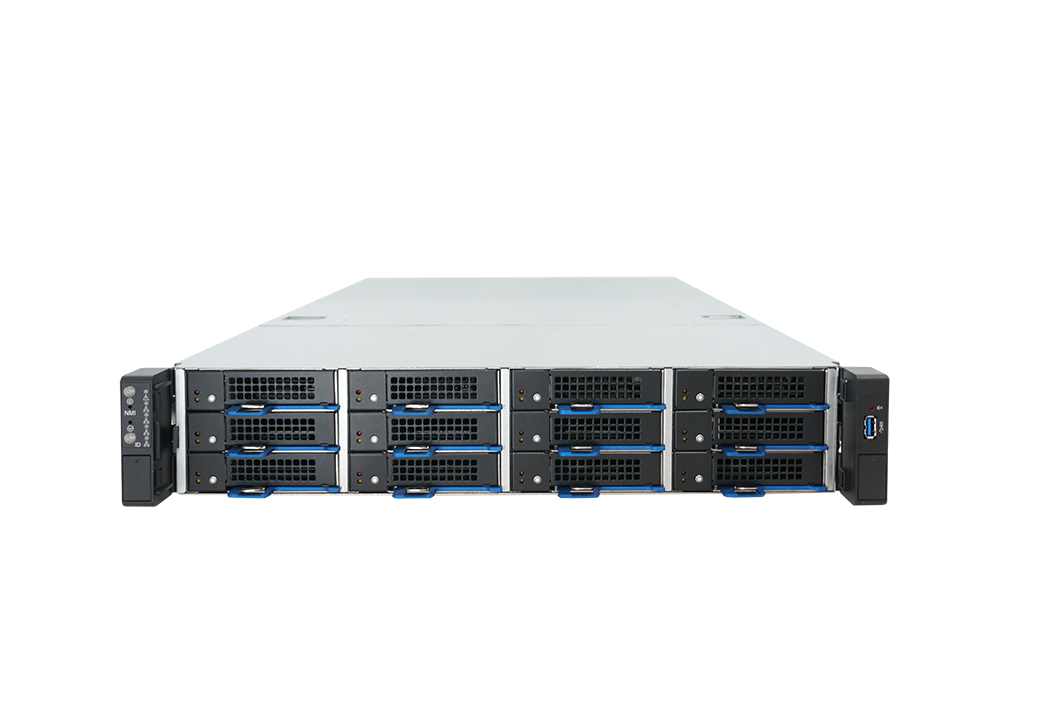

FlacheSAN2N12C-D5 2U 12 NVMe Add-In-Card PCIE x8 Dual Xeon SP

Key Features

  • All NVMe Flash Array supports Dual Intel® Xeon® SP Scalable Processors (Skylake)

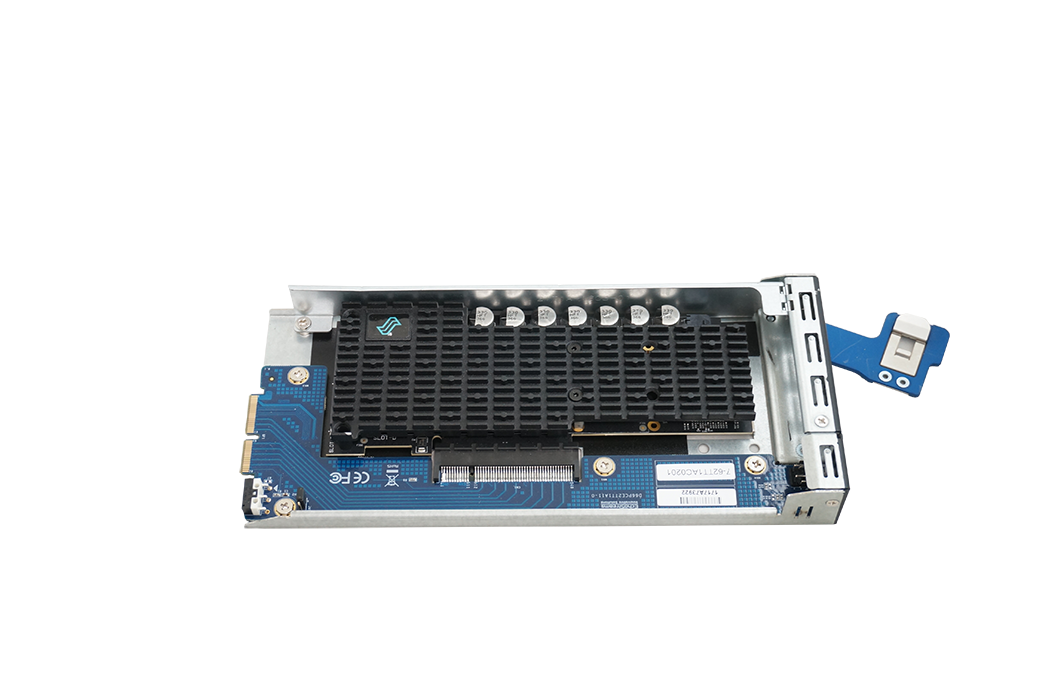

  • Support 12 x front accessible hot-swap NVMe PCIe3 x8 Add-in-Cards
  • Up to 60GB/s (480 Gigabits/s) throughput and 12 Millions IOPS through RDMA
  • Support 4x full height PCIe3 x16 and 2x Low Profile PCIe3 x16 slots
  • Symmetrically balanced design, each CPU managing half NVMe and NIC
              Contact us about this product Download data sheet
              System
              ProcessorSupports Dual Intel® Xeon® SP (Skylake) up to 205W TDP socket LGA3647
              System ChipsetIntel® C621 chipset
              System MemorySupports 16x DDR4 ECC RDIMM/LRDIMM 2133/2400/2666MT/s max. 2TB capacity
              Storage12x Low Profile Front Hot-Swappable PCIe3 x8 NVMe Add-in-Card
              Drive Bays12x PCIe x8 slots, 2x 2.5" internal drive bays and 2x 2.5" 7mm rear hot-swap drive bays
              Cooling4x 80mm high speed fans
              Environment
              Operating Temperature0°C ~ 35°C
              Storage Temperature-20°C ~ 70°C
              Relative Humidity5% ~ 95% relative humidity, non-condensing
              HTS Code8473 30 5100
              ECCN4A994
              ComplianceCE, FCC Class A, RoHS 6/6 compliant
              Physical
              Dimensions (W x H x D)System: 30"x19"x3.5" (LxWxH) Packaging: 37"x 24"x10"(LxWxH)
              WeightsGross: 29KG/64LBS; Net: 25KG/55LBS
