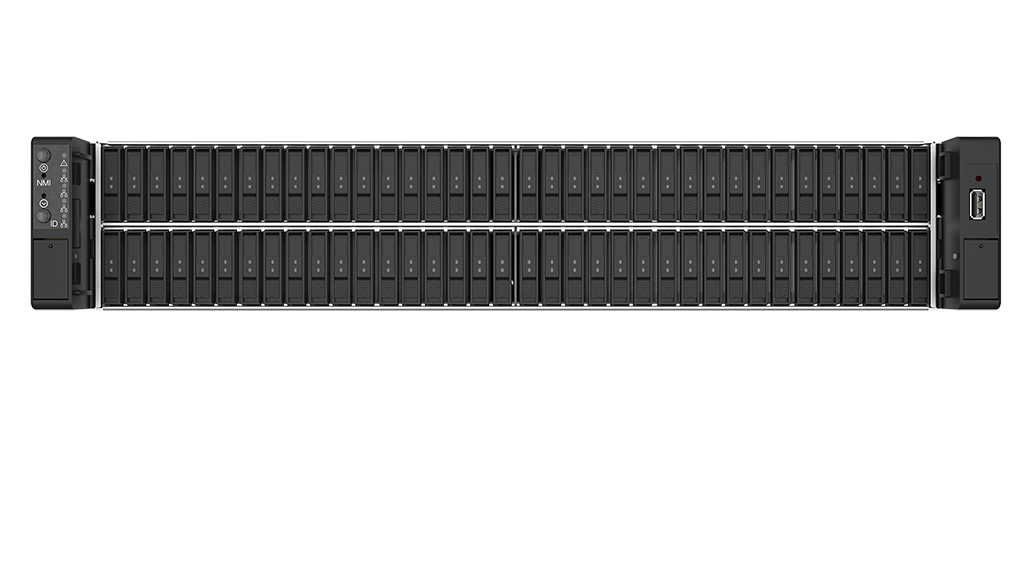

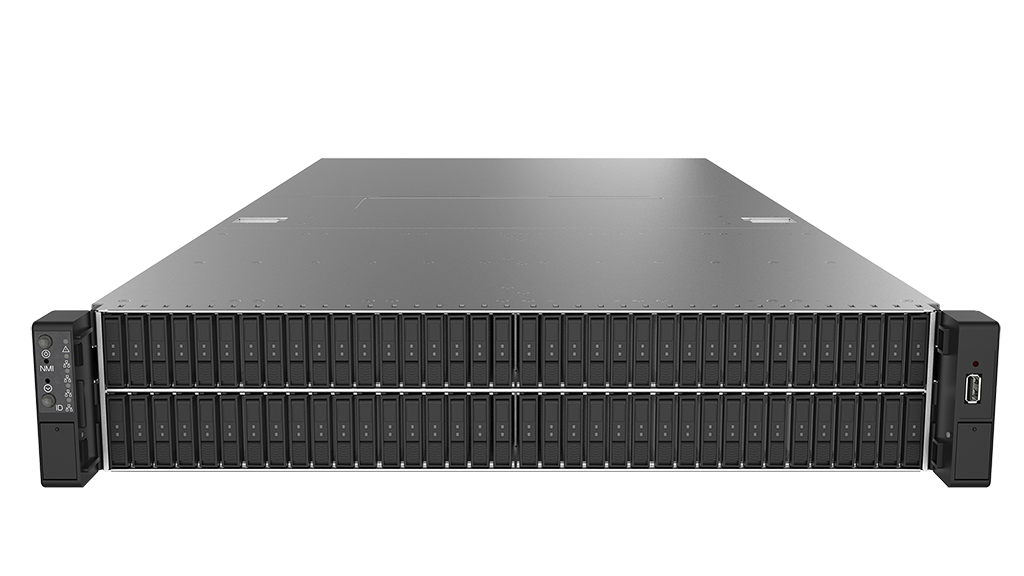

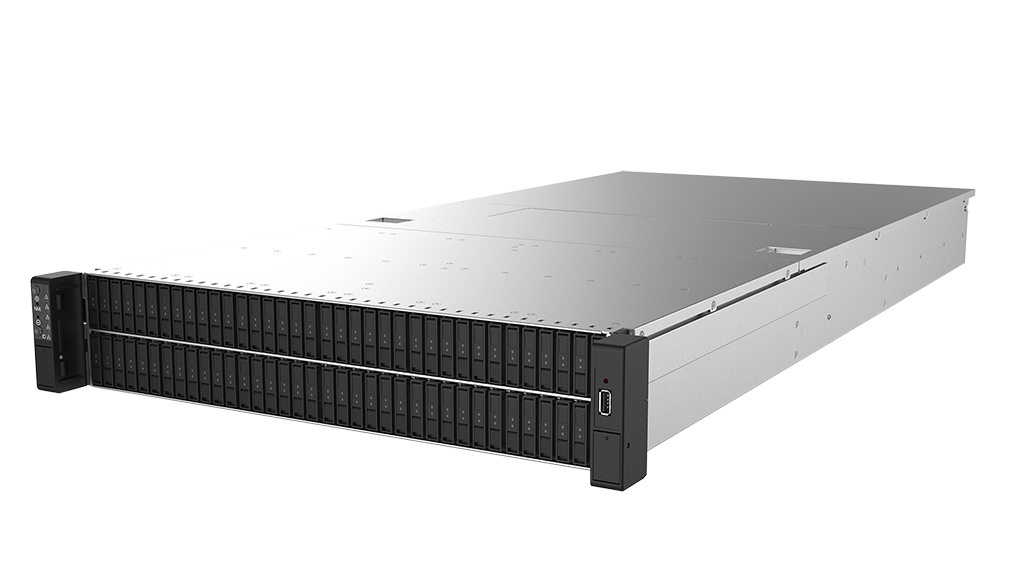

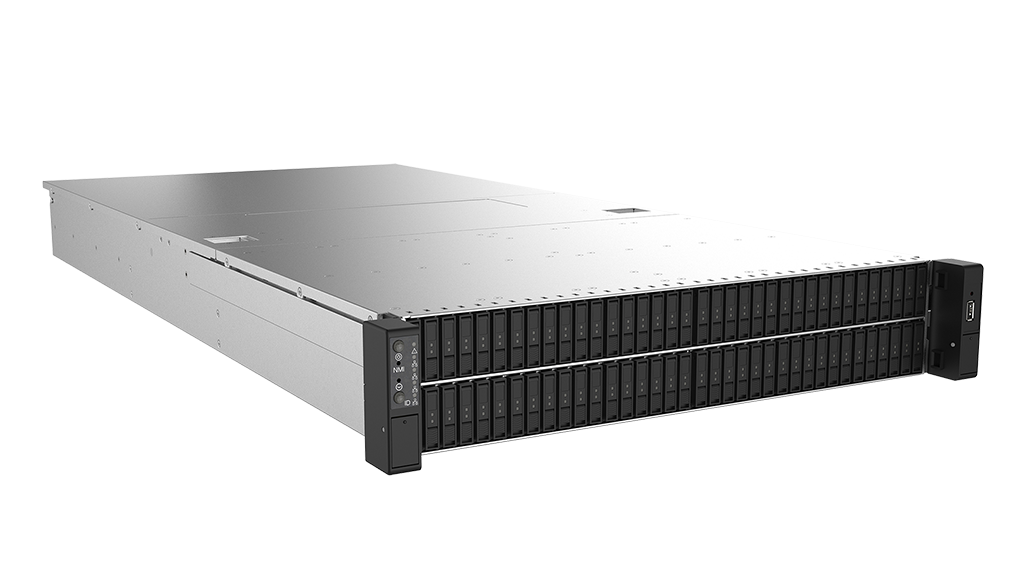

FlacheSAN2N108M-D5 2U with 108x hot-swappable Intel® EDSFF (E1.L) NVMe SSD bays
- Storage server supports Intel® Dual Processor Xeon Scalable; up to 2TB DDR4
- 2U with 108x hot-swappable Intel® EDSFF (E1.L) NVMe SSD bays
- Supports 2x PCIe3 x16 slots and 1x PCIe3 x16 OCP 2.0 card
- Capable of sustaining up to 300Gbps of bandwidth and 7.8M IOPS
System
| Processor | Intel® Dual Processor Xeon Scalable Processors up to 205W |
|---|---|
| System Memory | Supports up to 16x DIMMs DDR4 RDIMM/RDIMM/LRDIMM 2666/2400 |
| Network | 2x GbE ports, 1x GbE dedicated for IPMI |
| Drive Bays | 108x Hot-swappable EDSFF (EL.1) NVMe drive bays 2x internal M.2 NVMe for OS drives |
| Supported OS | Microsoft Windows Server 64bit 2012/R2 Windows 2016 64bit Linux RHEL 7.4 SUSE 11 SP4 x64 SUSE 12 SP2 x64 Ubuntu 16.04 x64 Ubuntu 17.04 x64 |
| Cooling | 4x 80x38mm High-Pressure cooling fans |
| Other Features | Dedicated GbE for IPMI 2.0 |
I/O

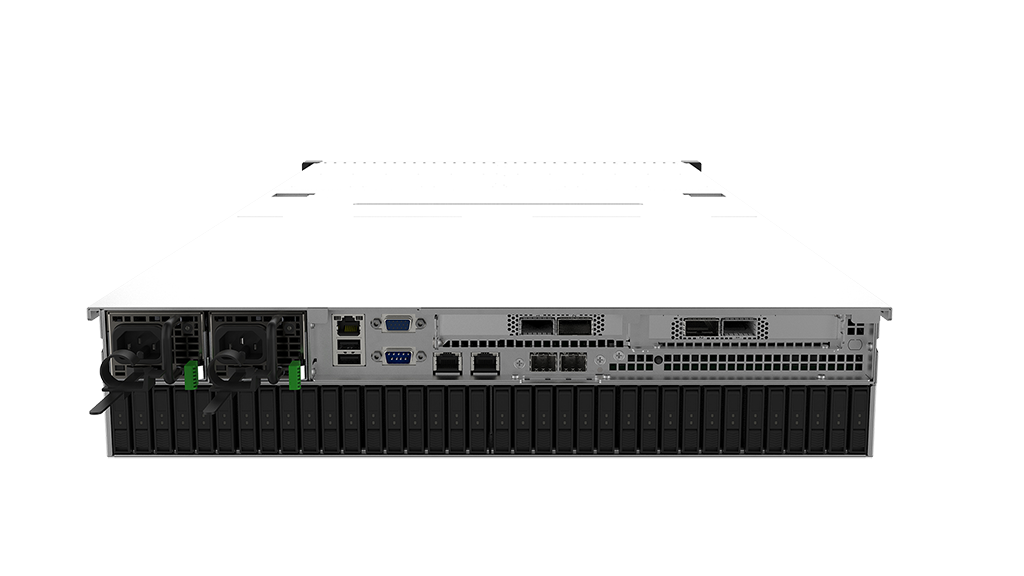

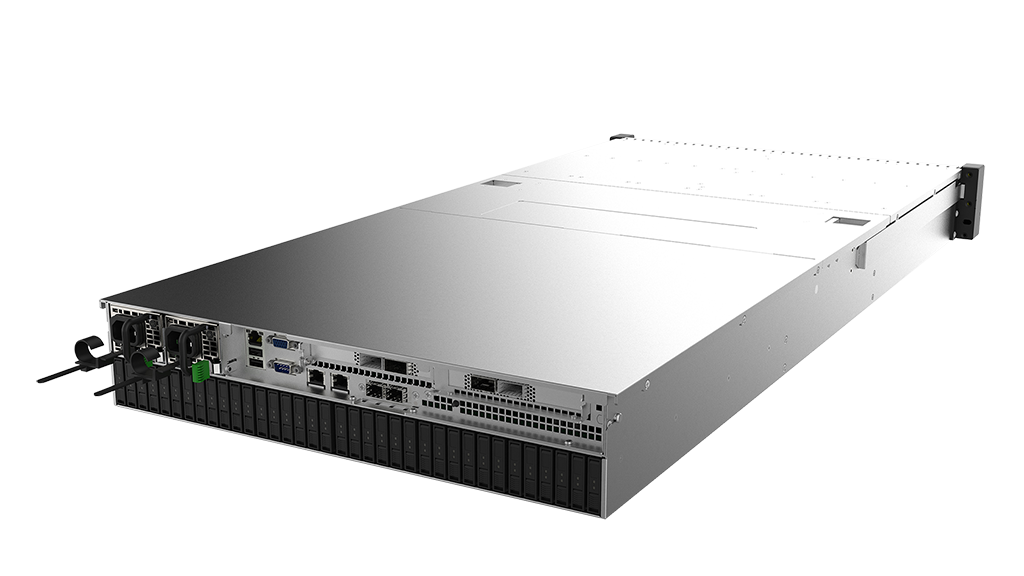

| I/O | 2x USB 3.0 ports 1x VGA port(s) 1x COM Port 2x 1GbE ports |
|---|---|
| Front I/O | Power On/Off switch LED, Locate switch LED, NMI switch 2x LAN LED |
| Expansion | (2) PCIe3 x16 FH/FL + (1) PCIe3 x16 OCP 2.0 |
Environment
| Operating Temperature | 0°C ~ 35°C |
|---|---|
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
| HTS Code | 8473 30 5100 |
| ECCN | 4A994 |
| Compliance | CE, FCC Class A, RoHS 6/6 compliant |
Physical
| Dimensions (W x H x D) | System: 37”x17.16”x3.5” (LxWxH) |
|---|
