FlacheSAN2-D5

flachestreams intel

FlacheSAN2-D5 2U 48 BAYS 7MM 12G SAS/SATA SSD DUAL XEON SP FULL HEIGHT

Key Features

  • Storage server supports Dual Intel® Xeon® SP Skylake up to 2TB DDR4

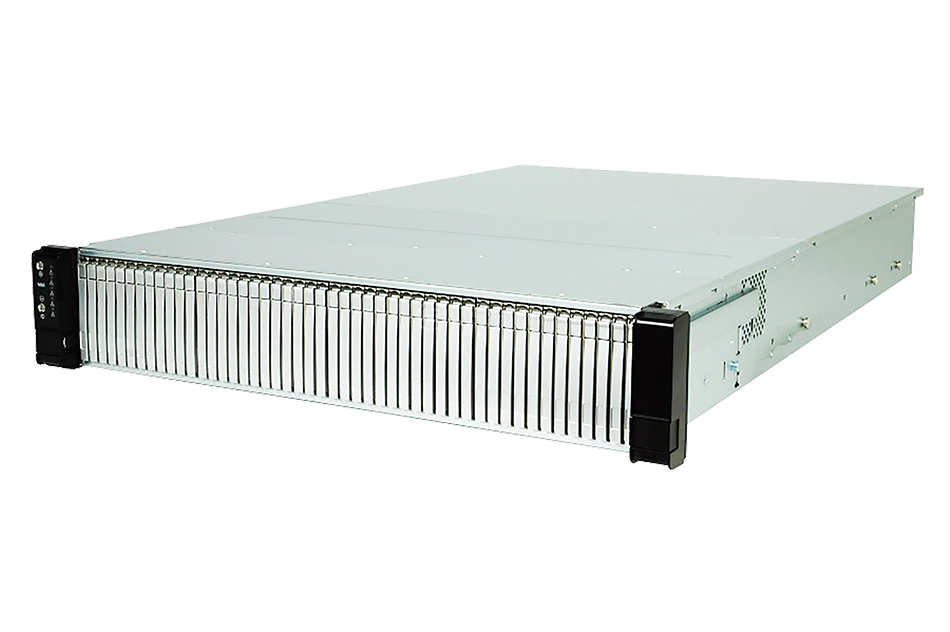

  • Front hot-swap 48x 2.5” 7mm and 4 rear 2.5” 7mm total 52 bay
  • Up to 21GB/s (168Gbps) sustain read throughput and up to 2M IOPS
  • Supports up to 6x Full Height PCIe Expansion slots; 4 of them are Full Length
  • High efficiency platinum redundant power supplies
      Contact us about this product Download data sheet
      System
      ProcessorSupports Dual Intel® Xeon® SP (Skylake) up to 205W TDP socket LGA3647
      System ChipsetIntel® C624 chipset
      System MemorySupports 24x DDR4 ECC RDIMM/LRDIMM 2133/2400/2666 MT/s
      Storage4x 6G/12G SAS HBA/RAID controllers or 2x 12G SAS HBA/RAID controllers with optional dual 36ports 12G SAS Expanders
      Drive Bays48x front hot-swap 2.5" 7mm 6G SATA drive bays; 4x rear hot-swap 2.5" 7mm 6G SATA bays
      Cooling4x 80mm high speed fans
      I/O
      ExpansionSupports up to total 7 PCIe slots; 1x SAS Mezz, 1x OCP module
      Environment
      Operating Temperature0°C ~ 35°C
      Storage Temperature-20°C ~ 70°C
      Relative Humidity5% ~ 95% relative humidity, non-condensing
      HTS Code8473 30 5100
      ECCN4A994
      ComplianceCE, FCC Class A, RoHS 6/6 compliant
      Physical
      Dimensions (W x H x D)System: 29"x19"x3.5" (LxWxH); Packaging: 38.2"x 25"x11.1"(LxWxH)
      WeightsGross: 25KG/55LBS; Net: 21.36KG/46LBS
      Downloads
      Data Sheet ds-FlacheSAN2-D5
      BIOS Intel S2600WF0
      AVL FlacheSAN2-D5-AVL
      Product Brief PB_FlacheStreams_Intel
      Install Guide FlacheSAN2-D5-Quick-Guide
