FlacheSAN1N36M-UN AMD EPYC 36 bay NF1 NVMe 850W HRP PSU
Key Features:
- Storage server supports Single Socket AMD EPYC CPU up to 2TB DDR4

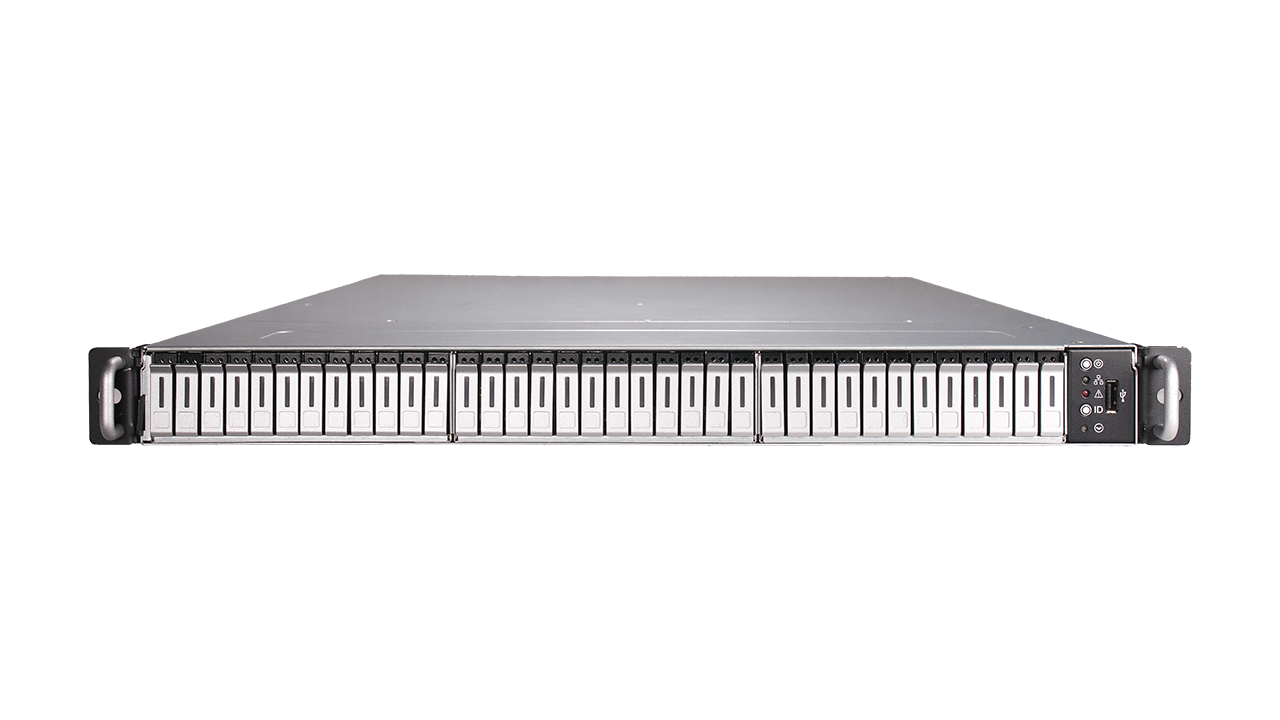

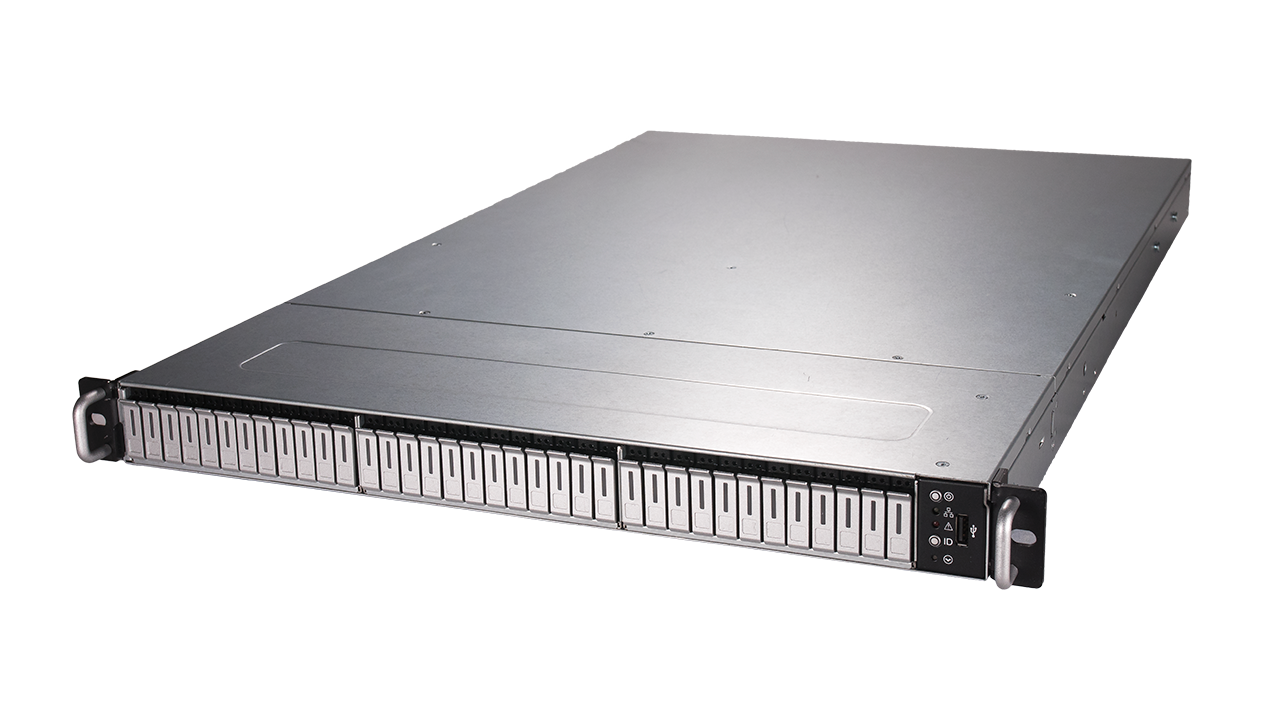

- 1U with 36x hot-swappable NF1 or M.2 NVMe SSD bays
- Supports 2x PCIe3 x16 slots and 1x PCIe3 x16 OCP 2.0 card
- Capable of sustaining up to 300Gbps of bandwidth and 7.8M IOPS
System
| Processor | Supports UP AMD EPYC (Naples) up to 180W TDP socket SP3 |
|---|---|
| System Memory | Supports up to 16x DIMMs DDR4 RDIMM/LRDIMM/NVDIMM 2667/2400 MHz |
| Network | 2x GbE ports, 1x GbE dedicated for IPMI |
| Drive Bays | 36x NF1 (M.3) NVMe drive bays or 36x M.2 (2260/2280/22110) NVMe with adapter tray 2x internal M.2 NVMe for OS drives |
| Supported OS | Microsoft Windows Server 64bit 2012/R2 Windows 2016 64bit Linux RHEL 7.4 SUSE 11 SP4 x64 SUSE 12 SP2 x64 Ubuntu 16.04 x64 Ubuntu 17.04 x64 |
| Cooling | 5x 40mm fans with Smart Fan Control |
I/O
| I/O | 2x USB 3.0 ports 1x VGA port(s) 1x COM Port 2x 1GbE ports 1x 1GbE MGMT |
|---|---|
| Front I/O | Power On/Off switch & LED Locate switch & LED, NMI switch 2x LAN LED |
| Expansion | 2x PCIe Gen 3 x16 Full Height Half Length 1x PCIe Gen3 x16 OCP 2.0 |
Power
| Power | 1+1 850W AC/DC or -48VDC/DC high efficiency redundant power supplies |
|---|
Environment
| Operating Temperature | 0°C ~ 35°C |
|---|---|
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
| HTS Code | 8473 30 5100 |
| ECCN | 4A994 |
| Compliance | CE, FCC Class A, RoHS 6/6 compliant |
Physical
| Dimensions (W x H x D) | System: 27.5”x19”x1.75” (LxWxH) Packaging: 35”x 24.5”x9”(LxWxH) |
|---|---|
| Weights | Gross: 50lbs without drives Net: 35lbs without drives |
Downloads
| Data Sheet | DS-FlacheSAN1N36M-UN |
|---|---|
| Product Brief | PB_FlacheStreams_AMD |
