FlacheSAN1L-U5
flachestreams
intel

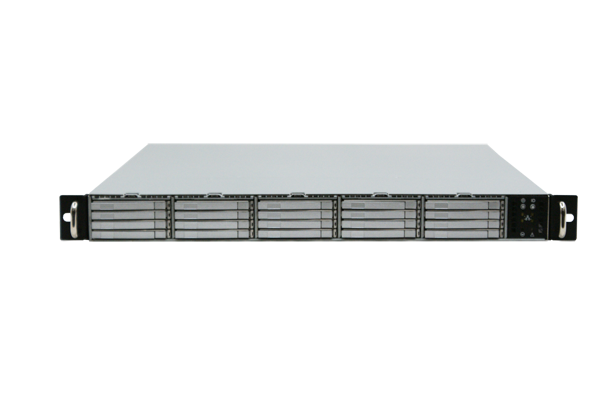

FlacheSAN1L-U5 1U 20 BAYS 7MM 12G SAS/SATA SSD SINGLE XEON SP
Key Features
- Storage server supports Single Socket Intel® Xeon® SP Skylake up to 768GB DDR4
- 2U with 20x hot-swappable 2.5”- 7mm SATA SSD or HDD bays
- Support 3x PCIe slots (2x Full Height)
- Low acoustic noise and induced vibrations for greater reliability
- Capable of sustaining up to 112Gbps of throughput and 1M+ IOPS
System
| Processor | Supports Single Socket Intel® Xeon® SP (Skylake) up to 205W TDP socket LGA3647 |
|---|---|
| System Chipset | Intel® C622 chipset |
| System Memory | Supports up to 6x DIMMs DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 |
| Storage | 36 ports 12G SAS Expander with 3 SFF8643 Connecters (Optional), LSI3008 onboard (Optional) |
| Drive Bays | 20x 2.5" 7mm hot-swap 6Gbps SATA drive bays; 2x internal 2.5" bays for OS drives |
| Cooling | 3x 97mm Blowers with Smart Fan Control |
I/O
| Expansion | 1 PCI-E 3.0 x8 (in x16) 2x PCI-E 3.0 x16 |
|---|
Environment
| Operating Temperature | 0°C ~ 35°C |
|---|---|
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
| HTS Code | 8473 30 5100 |
| ECCN | 4A994 |
| Compliance | CE, FCC Class A, RoHS 6/6 compliant |
Physical
| Dimensions (W x H x D) | System: 23"x19"x1.75" (LxWxH) Packaging: 31"x 24.5"x9"(LxWxH) |
|---|---|
| Weights | Gross: 47lbs without drives; Net: 35lbs without drives |
Downloads
| Data Sheet | ds-FlacheSAN1L-U5 |
|---|---|
| BIOS | X11SPW7_606 |
| Firmware | SMT_X11AST2500_122 |
| AVL | FlacheSAN1L-U5-AVL |
| Product Brief | PB_FlacheStreams_Intel |
