FlacheSAN1L-D5 1U 20 BAYS 7MM 12G SAS/SATA SSD DUAL XEON SP
Key Features

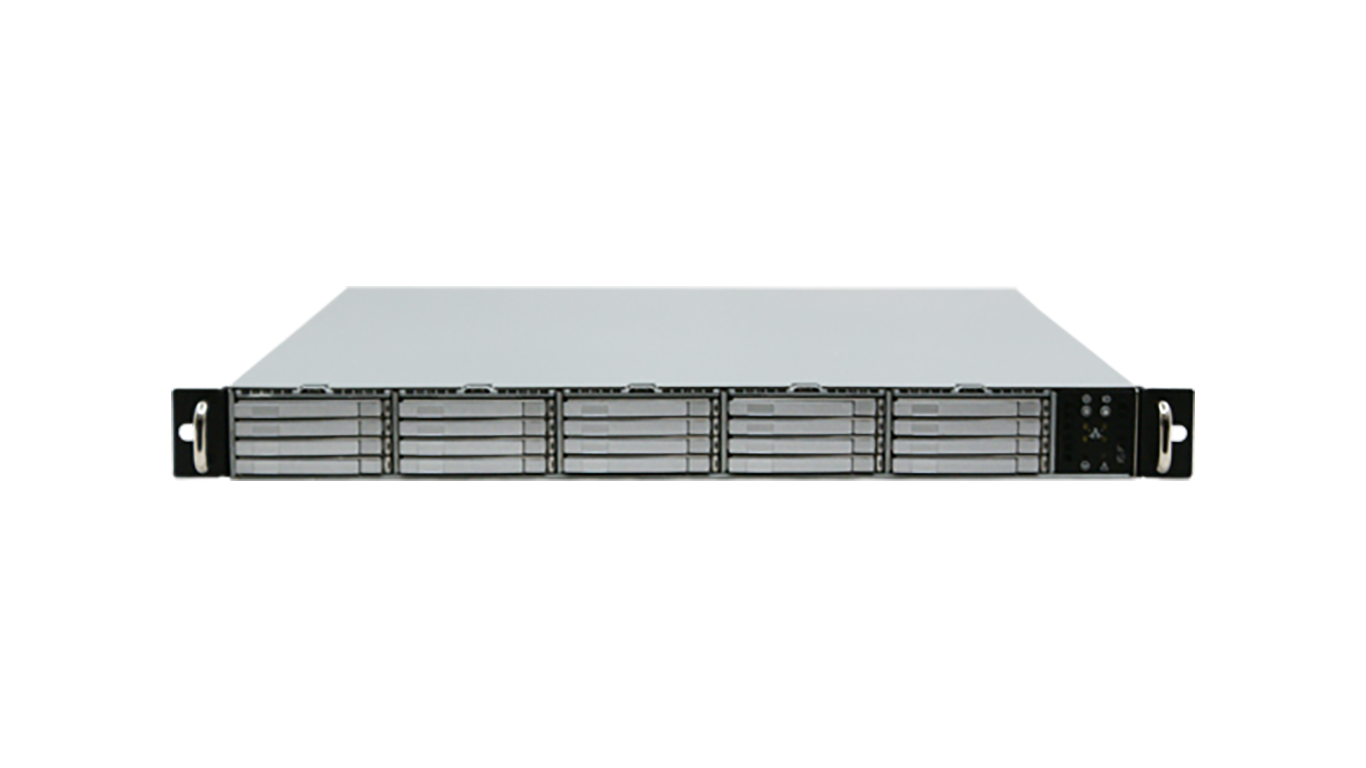

- 1U with 20x hot swappable 2.5″ – 7mm SATA SSD or HDD bays
- Dual Intel XeonSP Skylake with 2x PCIe3 x16 slots + 2x OCP x16
- Low acoustic noise and induced vibrations for greater reliability
- Capable of sustaining up to 112Gbps of throughput and 1M+ IOPS
System
| Processor | Supports Dual Intel® Xeon® SP (Skylake) up to 205W TDP socket LGA3647 |
|---|---|
| System Chipset | Intel® C621 chipset |
| System Memory | Supports up to 16x DIMMs DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 |
| Storage | 36 ports 12G SAS Expander with 3 SFF8643 Connectors (Optional) |
| Drive Bays | 20x 2.5" 7mm hot-swap 6Gbps SATA drive bays; 2x Internal 2.5" bays for OS drives |
| Cooling | 3x 97mm Blowers with Smart Fan Control |
Environment
| Operating Temperature | 0°C ~ 35°C |
|---|---|
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
| HTS Code | 8473 30 5100 |
| ECCN | 4A994 |
| Compliance | CE, FCC Class A, RoHS 6/6 compliant |
Physical
| Dimensions (W x H x D) | System: 27"x19"x1.75" (LxWxH) Packaging: 39"x 24.25"x9"(LxWxH) |
|---|---|
| Weights | Gross: 47lbs without drives; Net: 35lbs without drives |
Downloads
| Data Sheet | ds-FlacheSAN1L-D5 |
|---|---|
| BIOS | S7106GM2NR_v101 S7106GM2NR-BMC_v100 S7106GM2NR-L2_v201 S7106GM2NR-L2-BMC_v100 |
| AVL | FlacheSAN1L-D5-AVL |
| Product Brief | PB_FlacheStreams_Intel |
| Install Guide | FlacheSAN1L-D5-Quick-Guide |
