DSS424S-UN
durastreams
amd
DSS424S-UN 4U 24 BAYS 3.5" HDD 12G SAS REDUNDANT NODE SINGLE EPYC 1200W HRP
Key Features
- Storage server supports Single Socket AMD EPYC™ up to 1TB DDR4 RAM
- Four how-swappable 60mm fan modules per motherboard module

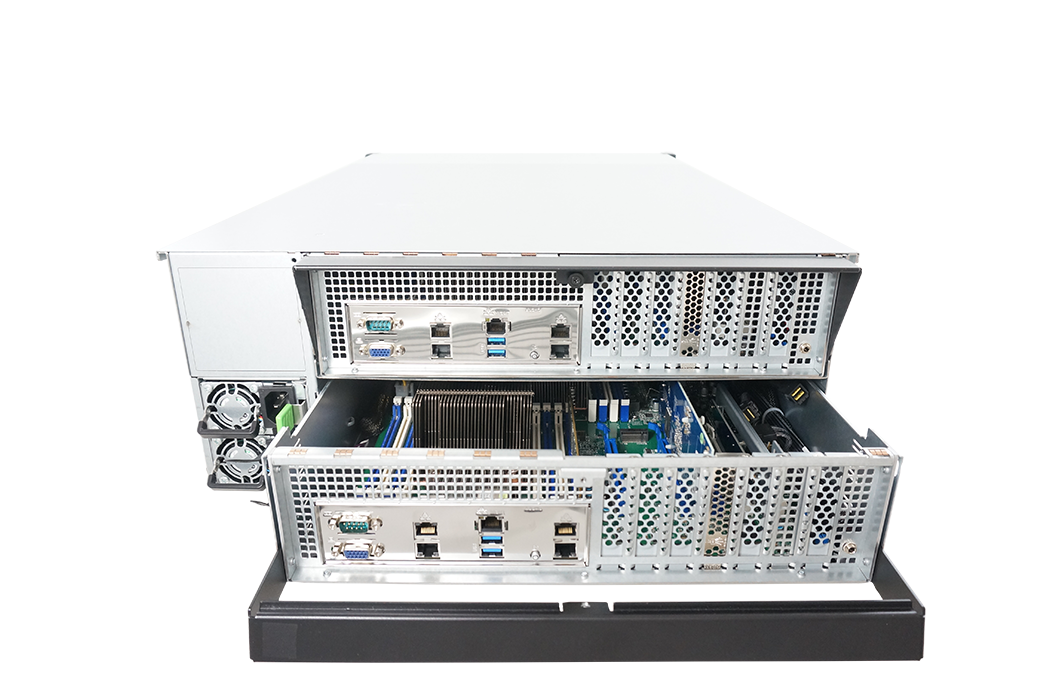

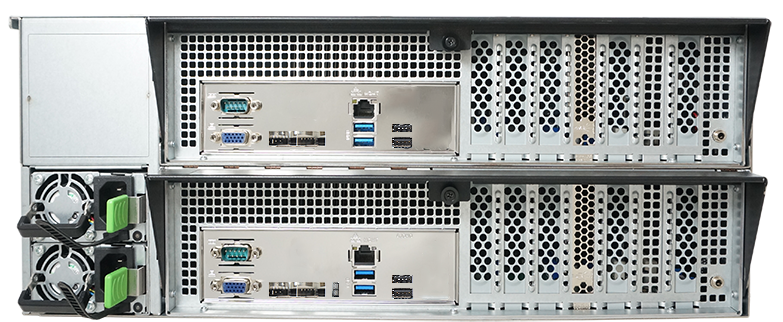

- Support two hot-swap MB modules each with Xeon DP server boards in one system as unified redundant controllers
- HA Redundnat cluster-in-a-box solution with PCIe NTB and GigE heartbeat
System
| Processor | Each Node: Supports single socket AMD EPYC™ up to 180W TDP socket SP3 |
|---|---|
| System Memory | Each Node: Supports up to 16x DIMMs DDR4 RDIMM/L 2400 |
| Storage | Each node: 36 ports 12G SAS Expander with 3 SFF8643 Connectors |

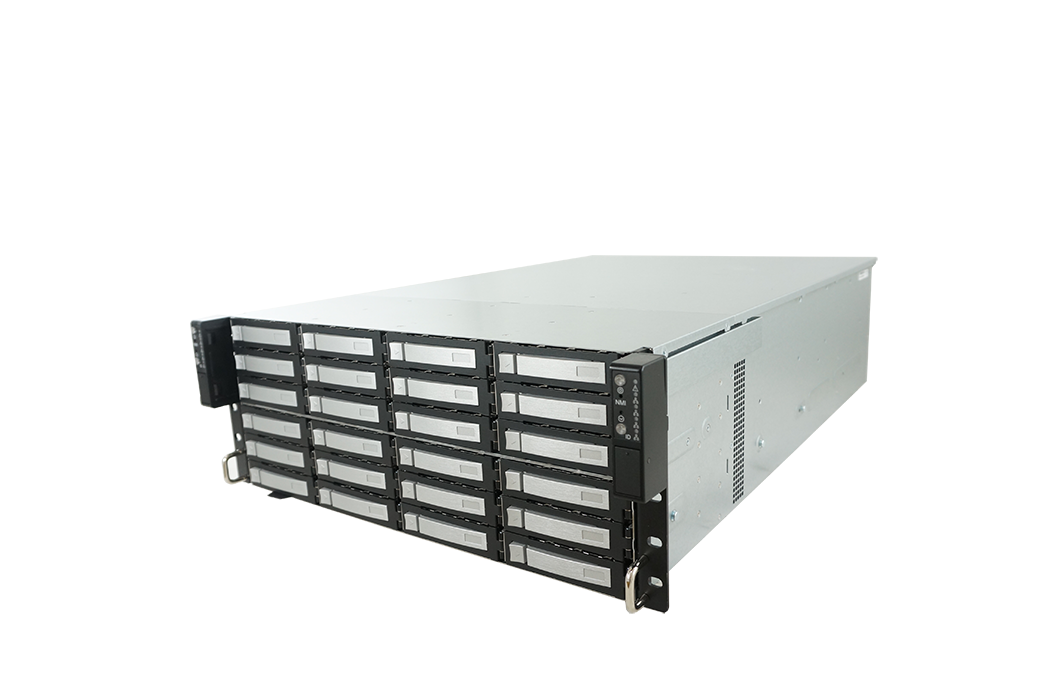

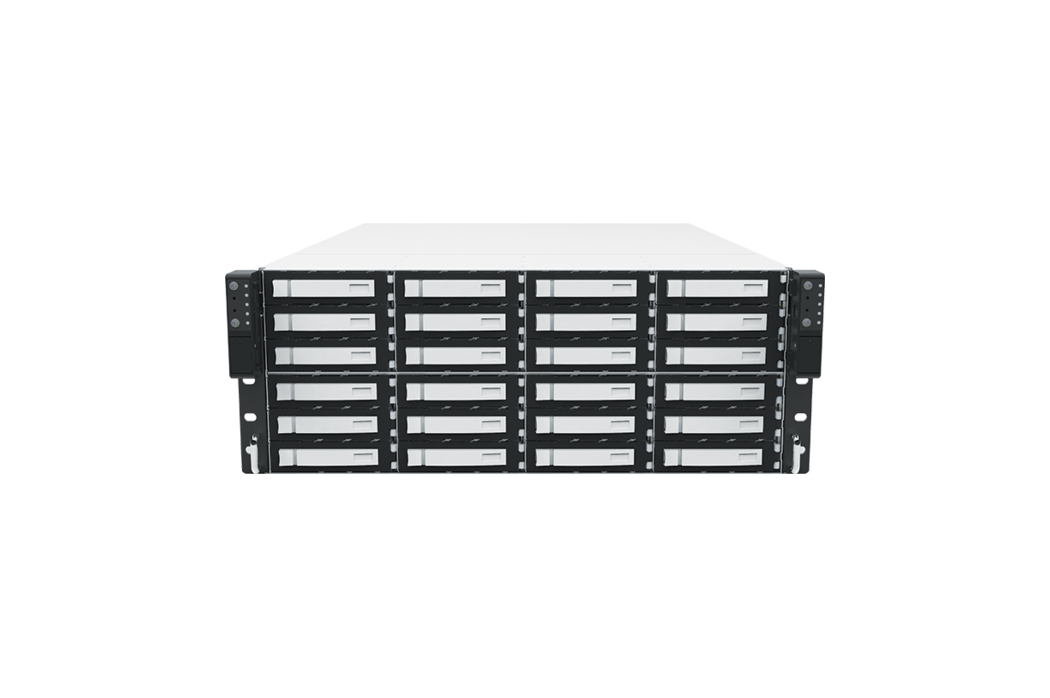

| Drive Bays | 24 hot-swap 3.5" 12G/6G SAS/SATA drive bay Each node: 2x internal 2.5" 7mm for OS drive bays |
| Cooling | Each node: 4x 60mm fans |
I/O
| Expansion | Each Node: 4x PCI-E3.0 x16; 3x PCI-E3.0 x8 |
|---|
Environment
| Operating Temperature | 0°C ~ 35°C |
|---|---|
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
| HTS Code | 8473 30 5100 |
| ECCN | 4A994 |
| Compliance | CE, FCC Class A, RoHS 6/6 compliant |
Physical
| Dimensions (W x H x D) | System: 27"x19"x7" (DxWxH) Packaging: 38"x 25.2"x18"(LxWxH) |
|---|---|
| Weights | Gross: 51.78KG/114LBS Net: 33.9KG/75LBS |
Downloads
| Data Sheet | DS_DSS424S-UN_E |
|---|---|
| BIOS | S8026_BMC S8026_v100 |
| AVL | DSS424S-UN-AVL |
| Product Brief | PB_DuraStreams_AMD |
| Install Guide | DSS424S-UN-Quick-Guide-v1 |
