DSS316S-UN
durastreams
amd

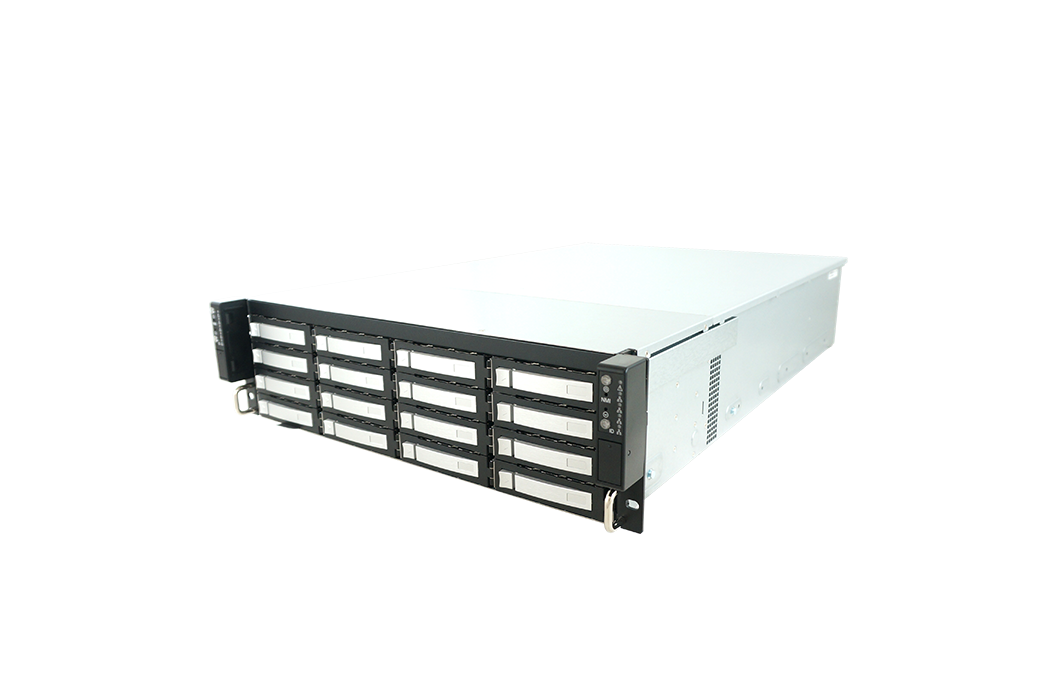

DSS316S-UN 3U 16 BAYS 3.5" HDD 12G SAS REDUNDANT NODE SINGLE EPYC 1200W HRP
Key Features
- Storage server supports single AMD EPYC™ motherboard up to 1TB DDR4
- Four Hot-swappable 60mm fan modules per motherboard module
- Support two hot-swap MB modules each with Xeon DP server boards in one system as unified redundant controllers
- HA Redundant cluster-in-a-box solution with PCIe NTB and GbE heartbeat
System

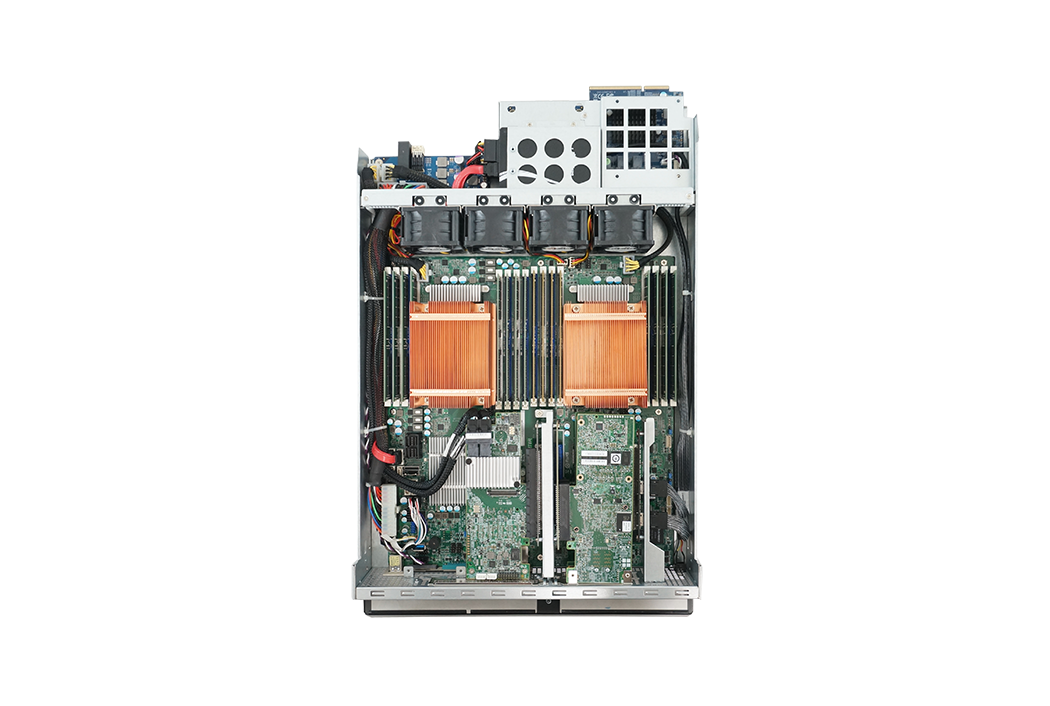

| Processor | Each Node: Supports single socket AMD EPYC™ up to 180W TDP socket SP3 |
|---|---|
| System Memory | Each Node: Supports up to 16x DIMMs DDR4 RDIMM/L 2400 |
| Storage | Each Node:36 ports 12G SAS Expander with 3 SFF8643 Connectors |
| Drive Bays | 16 hot-swap 3.5" 12G/6G SAS/SATA drive bay Each Node: 2x internal 2.5" 7mm for OS drive bay |
| Cooling | 4x 60mm fans |
I/O

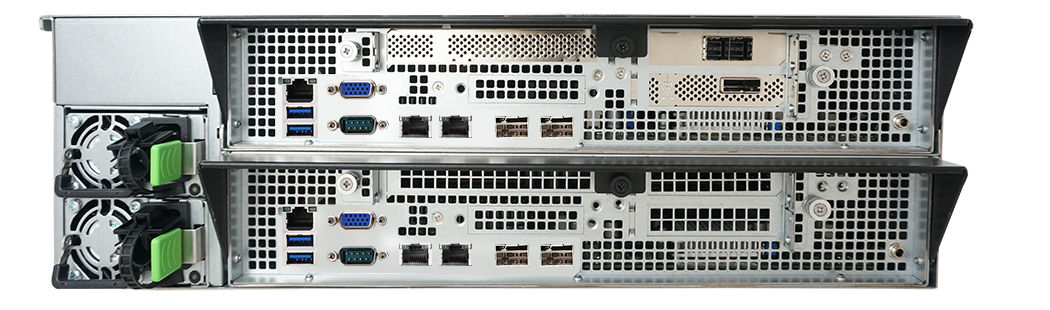

| Expansion | Each Node: 2x PCI-E3.0 x8; 1x PCI-E3.0 x16; 1x PCI-E3.0 x16 OCP 2.0 |
|---|
Environment
| Operating Temperature | 0°C ~ 35°C |
|---|---|
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
| HTS Code | 8473 30 5100 |
| ECCN | 4A994 |
| Compliance | CE, FCC Class A, RoHS 6/6 compliant |
Physical
| Dimensions (W x H x D) | System: 27"x19"x5.25" (LxWxH) Packaging: 38“x25.5"x15"(LxWxH) |
|---|---|
| Weights | Gross Weight: 37.95kg/85.3lbs Net Weight: 33.6kg/74lbs |
Downloads
| Data Sheet | DS_DSS316S-UN_E |
|---|---|
| BIOS | S8026_BMC S8026_v100 |
| AVL | DSS316S-UN-AVL |
| Product Brief | PB_DuraStreams_AMD |
