DSS316S-D5

durastreams intel

DSS316S-D5 3U 16 BAYS 3.5" HDD 12G SAS REDUNDANT NODE DUAL XEON SP 1200W HRP

Key Features

  • Storage server supports Dual Intel® Xeon® SP Skylake up to 2TB DDR4
  • Four hot-swappable 60mm fan modules per motherboard module

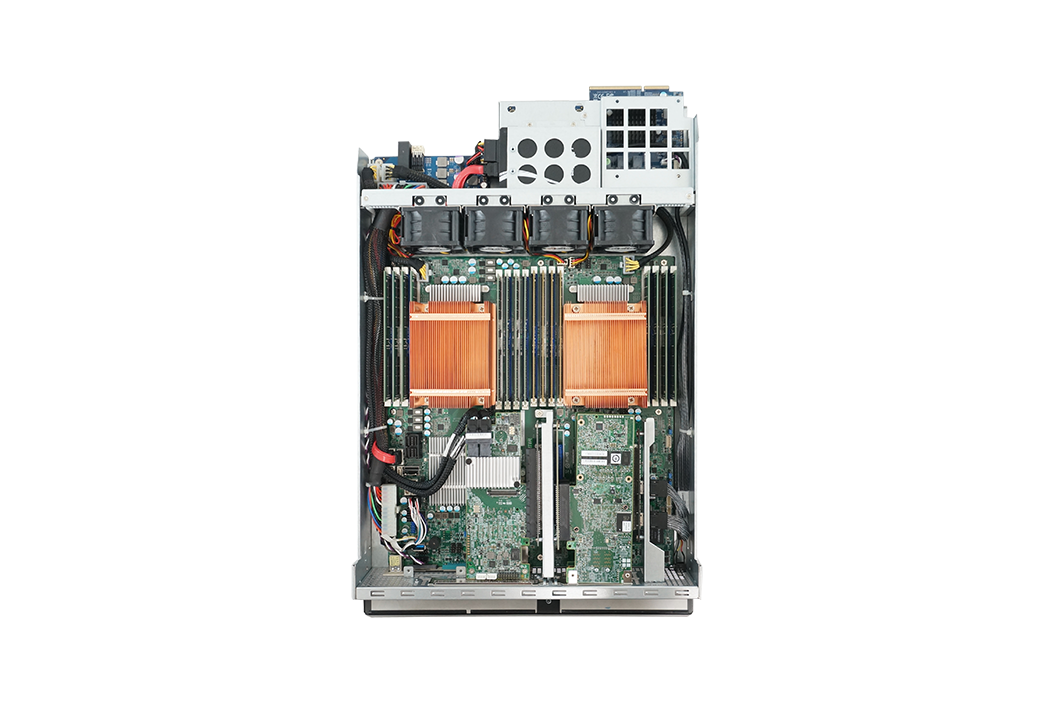

  • Supports two hot-swap MB Modules each with Xeon DP server boards in one system as unified redundant controllers
  • HA Redundant Cluster-in-a-Box solution with PCIe NTB and GigE heartbeat
Contact us about this product Download data sheet
System
ProcessorEach Node: Supports Single Socket Intel® Xeon® P Skylake up to 205W TDP socket LGA3647
ExpanderSingle or Dual LSI 12G SAS Expander
System ChipsetIntel C621 chipset
System MemoryEach node: Supports 16x DIMMs DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666
Controller Support12Gb/s Host-based RAID Controller cards and HBAs with external connectivity
StorageEach node: 36 ports 12G SAS Expander with 3 SFF8643 Connectors

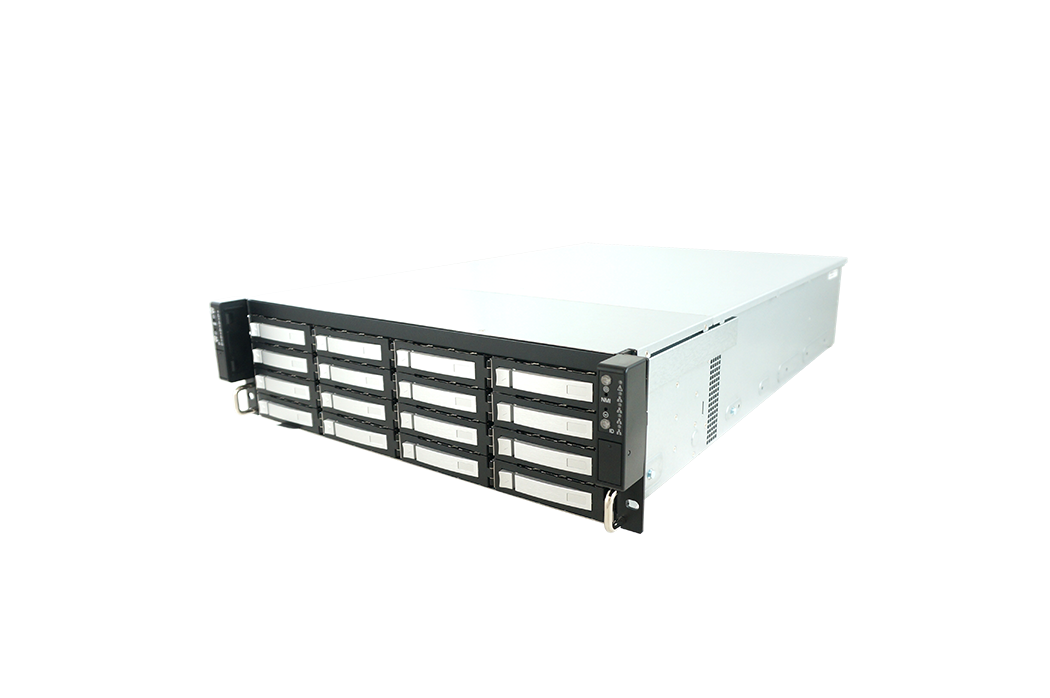

Drive Bays16 hot-swap 3.5" 12G/6G SAS/SATA drive bay Each node: 2x internal 2.5" 7mm for OS drive bays
Enclosure ManagementWeb GUI Ethernet Mgmt Port, HDD Status/ Identifier LEDs, Smart Fan, Thermal Monitor, HDD Monitor, Voltage Monitor, Inband SES3 Support
CoolingEach node: 4x 60mm fans
I/O

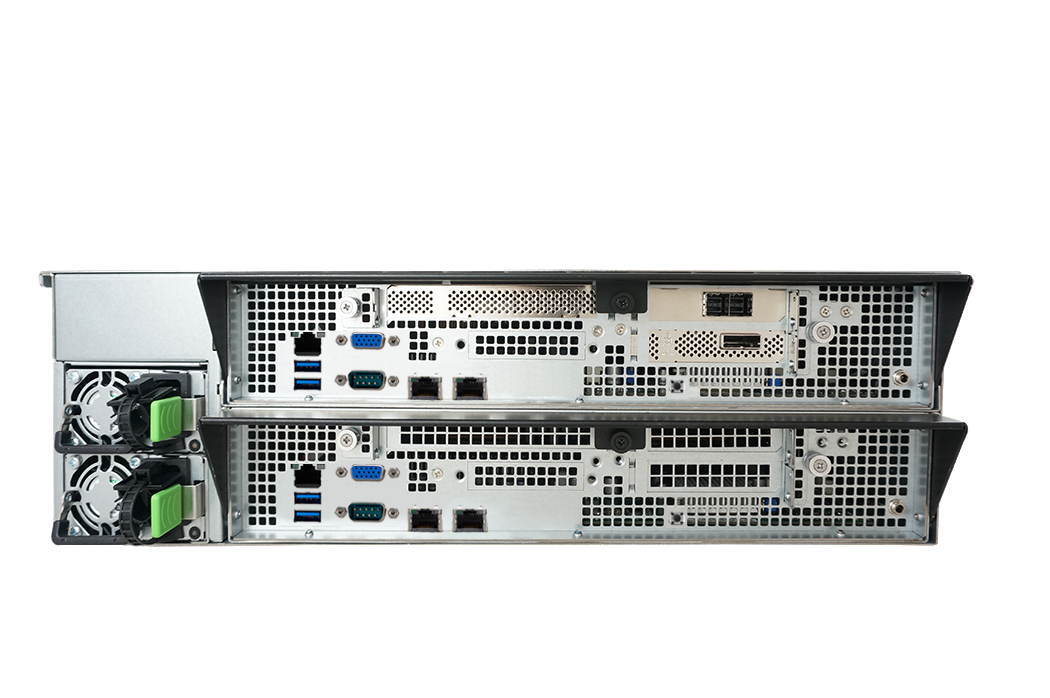

I/O2x SFF8644 12G SAS lanes Uplink host / expander
1x SFF8644 12G SAS lanes Downlink / expander
1x RJ45 for remote management / expander
1x mini Jack for RS232 management
ExpansionEach node: 2x PCIe Gen3 x 8 slots; 1x PCIe Gen3 x 16 slots; 1x PCIe Gen3 x 16 Storage Mezz; 1x PCIe Gen3 x 16 OCP NIC
Environment
Operating Temperature0°C ~ 35°C
Storage Temperature-20°C ~ 70°C
Relative Humidity5% ~ 95% relative humidity, non-condensing
HTS Code8473 30 5100
ECCN4A994
ComplianceCE, FCC Class A, RoHS 6/6 compliant
Physical
Dimensions (W x H x D)System: 27"x19"x5.25" (LxWxH) Packaging: 38"x 25.5"x15"(LxWxH)
WeightsGross: 37.95KG/83.5LBS; Net: 33.6KG/74LBS
