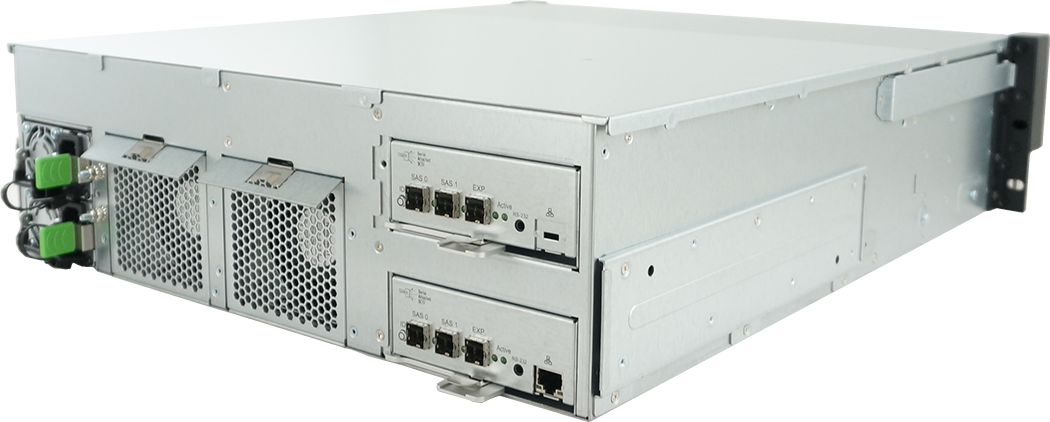

DSS316J-S3
durastreams
JBOD
Key Features

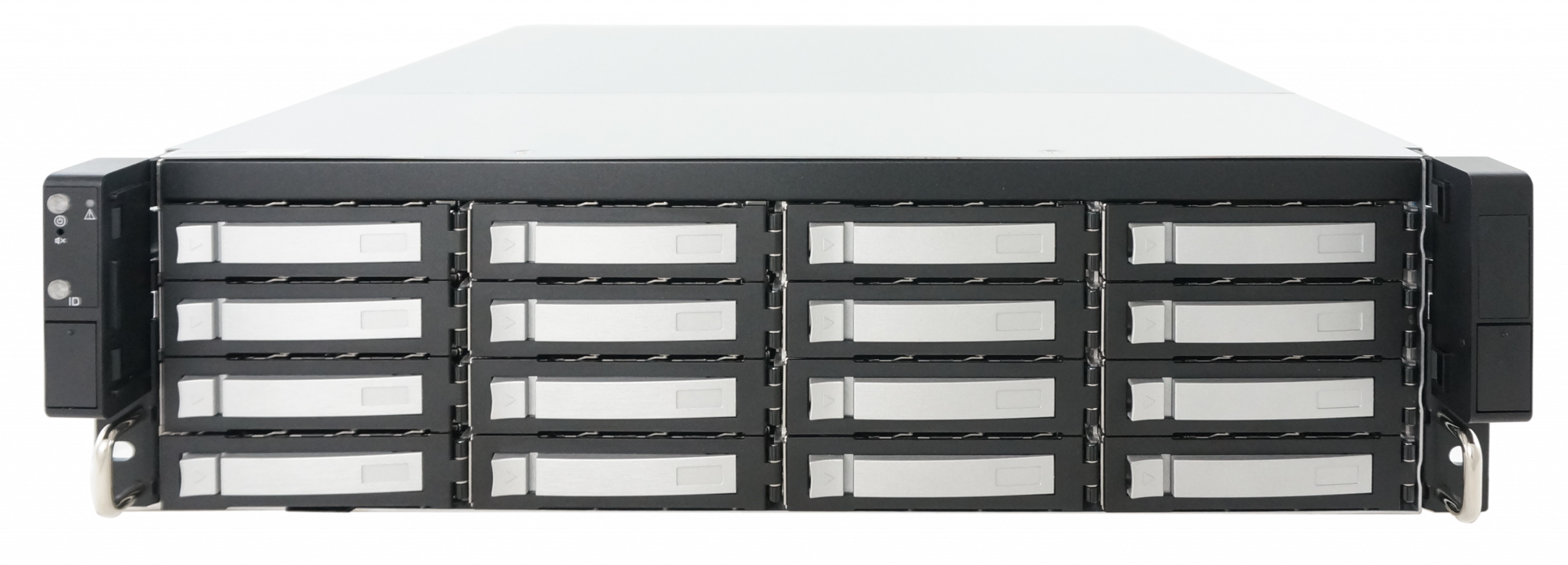

- 3U with 16x 12Gbps SAS 3.5” Tray-less hot-swap HDD bays
- Support redundant 12G host controller for failover
- Two hot-swappable redundant fan modules with Smart Fan Control
- Management NIC port with remote access GUI
- Support 3x SFF8644 12G SAS wide ports per controller
System
| Expander | Single or Dual LSI 12G SAS Expander |
|---|---|
| Controller Support | 12Gb/s Host-based RAID Controller cards and HBAs with external connectivity |
| Storage | 16x 3.5" 12Gbps/6Gbps SAS/SATA Tray-less bays |
| Enclosure Management | Web GUI Ethernet Mgmt Port, HDD Status/ Identifier LEDs, Smart Fan, Thermal Monitor, HDD Monitor, Voltage Monitor, Inband SES3 Support |
| Cooling | Two Redundant 80mm hot-swap exhaust fan modules with Smart Fan Control for optimal cooling |
I/O

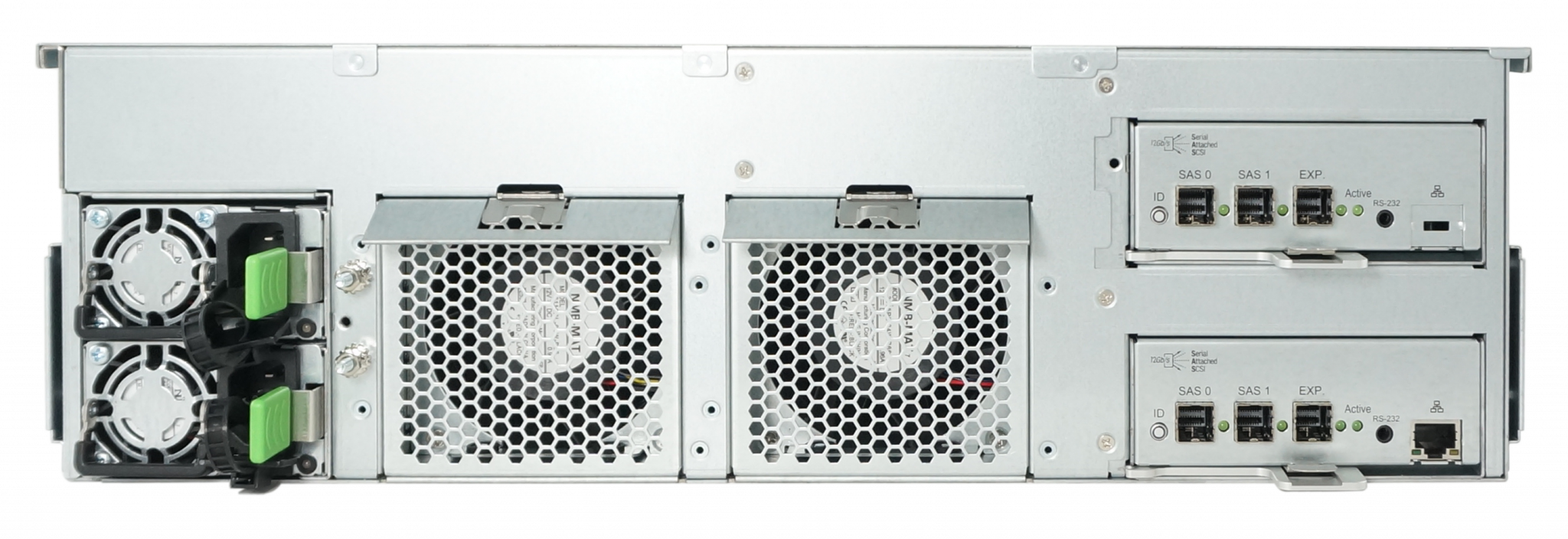

| I/O | 2x SFF8644 12G SAS lanes Uplink host / expander 1x SFF8644 12G SAS lanes Downlink / expander 1x RJ45 for remote management / expander 1x mini Jack for RS232 management |
|---|
Environment
| Operating Temperature | 0°C ~ 35°C |
|---|---|
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
| HTS Code | 8473 30 5100 |
| ECCN | 4A994 |
| Compliance | CE, FCC Class A, RoHS 6/6 compliant |
Physical
| Dimensions (W x H x D) | System: 20.5"x19"x5.25" (LxWxH) Packaging: 35.5"x 23.5"x18"(LxWxH) |
|---|---|
| Weights | 50lbs w/o Hard Drives |
Downloads
| Data Sheet | DS_DSS316J-S3_E |
|---|---|
| BIOS | JNM-2.0.5-BIOS |
| Firmware | fwsas3x36-Firmware |
| MFG file | mfgsas3x36R-MFG-File |
| AVL | DSS316J-AVL |
| Install Guide | DSS316J-S3-Quick-Guide-v2 |
