DSS224S-UN
durastreams
amd
DSS224S-UN 2U 24 BAYS 2.5" 12G SAS REDUNDANT NODE SINGLE EPYC 1200W HRP
Key Features
- Storage server supports single AMD EPYC™ up to 1TB DDR4
- 2U Redundant High Availability dual systems (nodes)
- Support high density 24 bays dual ported 12Gb/s SAS for HDD or SSD
- Support redundancy heartbeat through optional GbR and PCIe x 8 NTB
- COTS components for easy migration to future generation
System
| Processor | Each Node: Supports single socket AMD EPYC™ up to 180W TDP socket SP3 |
|---|---|
| System Memory | Each Node: Supports up to 16x DIMMs DDR4 RDIMM/L 2400 |
| Storage | Each Node: 36 ports 12G SAS Expander with 3 SFF8643 connecters |

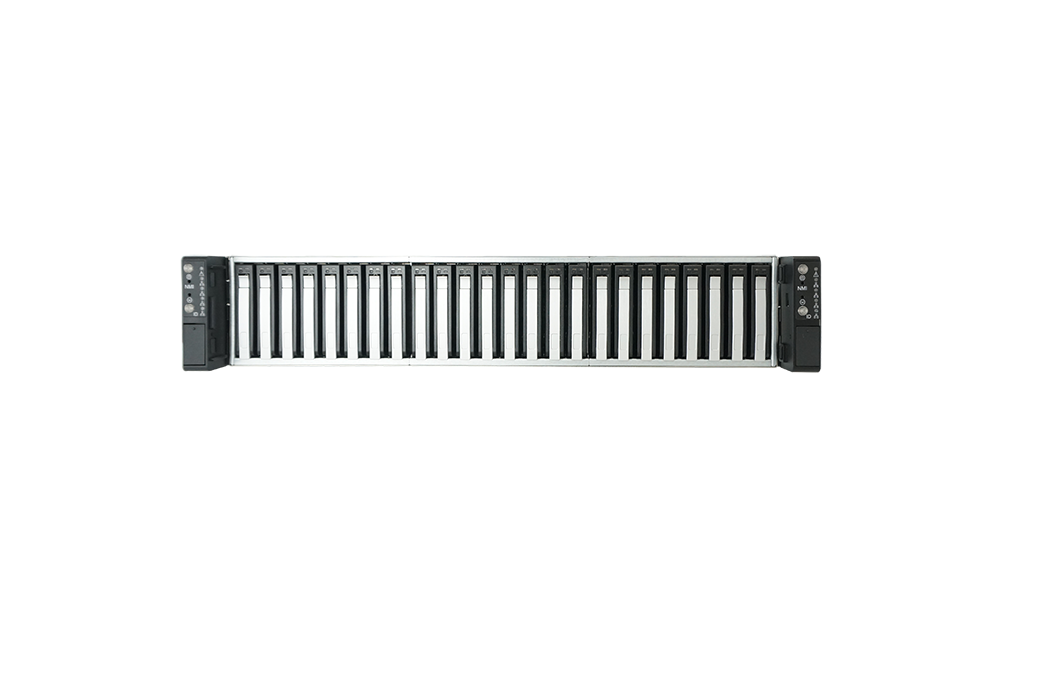

| Drive Bays | 24x 2.5" 12Gbps/6Gbps SAS dual ported HDD bays Each Node has 2x internal 2.5" OS drive bay |
| Cooling | Each node: 5x 40mm fans |
I/O
| Expansion | Each Node: 2x PCI-E3.0 x16; 1x PCI-E3.0 x16 OCP 2.0 |
|---|
Environment
| Operating Temperature | 0°C ~ 35°C |
|---|---|
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
| HTS Code | 8473 30 5100 |
| ECCN | 4A994 |
| Compliance | CE, FCC Class A, RoHS 6/6 compliant |
Physical
| Dimensions (W x H x D) | System: 27"x19"x7" (LxWxH) Packaging: 38“x25.2"x18"(LxWxH) |
|---|---|
| Weights | Gross Weight: 51.78kg/114lbs Net Weight: 33.9kg/75lbs |
Downloads
| Data Sheet | DS-DSS224S-UN |
|---|---|
| BIOS | S8026_BMC S8026_v100 |
| AVL | DSS224S-UN-AVL |
| Product Brief | PB_DuraStreams_AMD |
| Install Guide | DSS224S-UN-Quick-Guide-v1 |
