DSS224S-D5
durastreams
intel

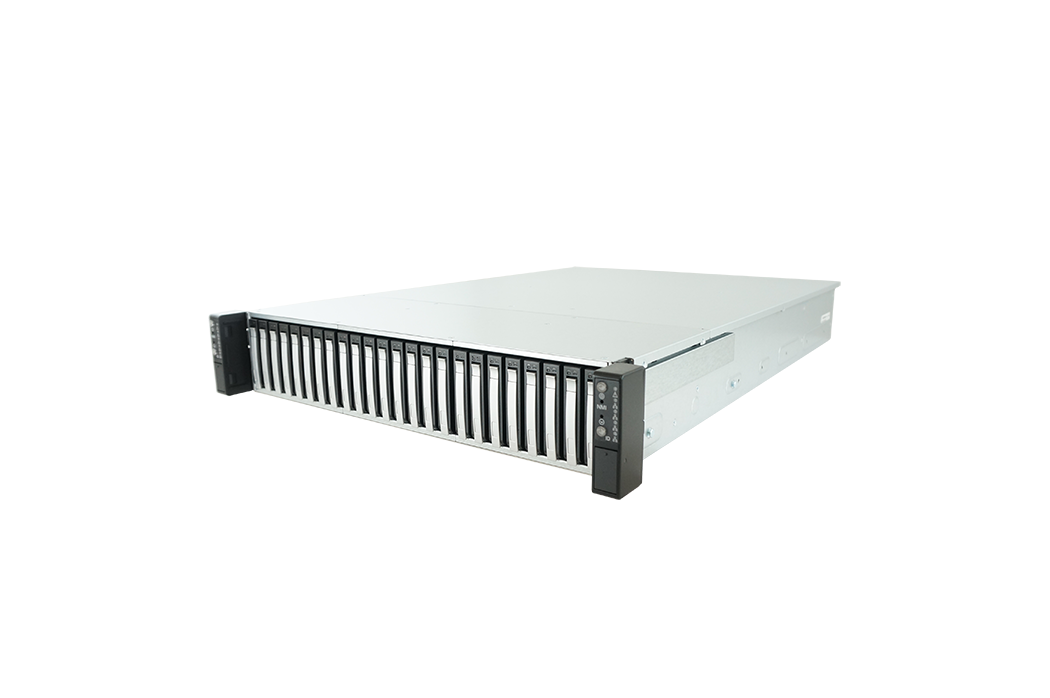

DSS224S-D5 2U 24 BAYS 2.5" 12G SAS REDUNDANT NODE DUAL XEON SP 1200W HRP
Key Features
- Storage server supports Dual Intel® Xeon® SP Skylake up to 2TB DDR4
- 2U Redundant High Availability dual systems (nodes)
- Supports high density 24 bays dual ported 12G SAS for HDD or SSD
- Supports redundancy heartbeat through optional GbE and PCIe x8 NTB
- COTS component for easy migration to future generation
System
| Processor | Each Node: Supports Single Socket Intel® Xeon® P Skylake up to 205W TDP socket LGA3647 |
|---|---|
| System Chipset | Intel C621 chipset |
| System Memory | Each node: Supports 16x DIMMs DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 |
| Storage | Each node: 36 ports 12G SAS Expander with 3 SFF8643 Connectors |
| Drive Bays | 24x 2.5" 12Gbps/6Gbps SAS dual ported HDD bays Each node has 2x internal 2.5" OS drive bay |
| Cooling | Each node: 5x 40mm fans |
I/O
| Expansion | Each node: 2x PCIe Gen3 x 16 slots; 1x PCIe Gen3 x16 OCP Storage Mezz,; 1x PCIe Gen3 x16 OCP NIC |
|---|
Environment
| Operating Temperature | 0°C ~ 35°C |
|---|---|
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
| HTS Code | 8473 30 5100 |
| ECCN | 4A994 |
| Compliance | CE, FCC Class A, RoHS 6/6 compliant |
Physical
| Dimensions (W x H x D) | System: 27"x19"x7" (DxWxH) Packaging: 38"x 25.2"x18"(LxWxH) |
|---|---|
| Weights | Gross: 51.78KG/114LBS; Net: 33.9KG/75LBS |
Downloads
| Data Sheet | DS_DSS224S-D5_E |
|---|---|
| BIOS | S7106GM2NR_v101 S7106GM2NR-BMC_v100 S7106GM2NR-L2_v201 S7106GM2NR-L2-BMC_v100 |
| AVL | DSS224S-D5-AVL |
| Product Brief | PB_DuraStreams_Intel |
| Install Guide | DSS224S-D5-Quick-Guide-v1 |
