DSS224N-UN
durastreams
amd

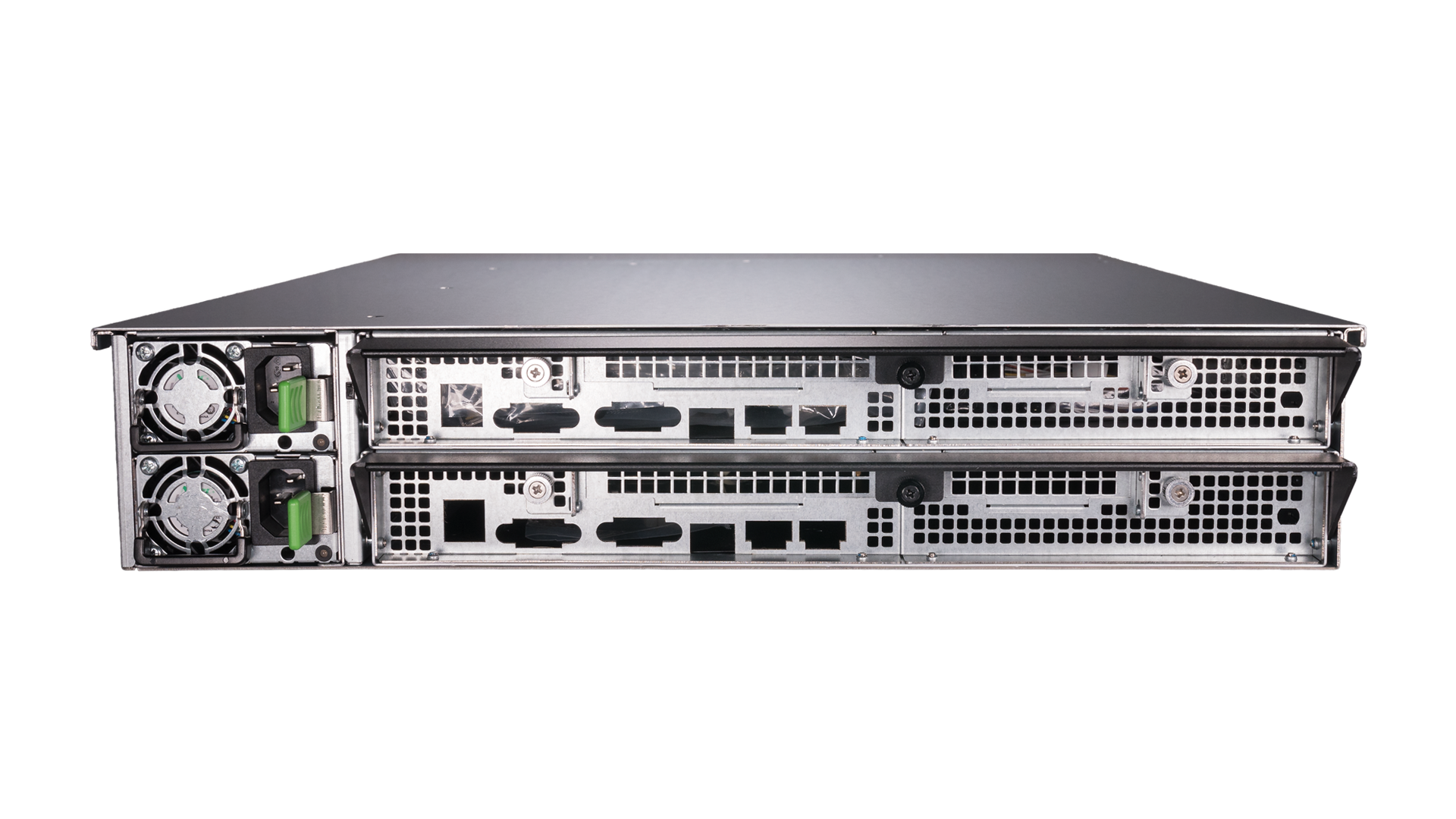

DSS224N-UN 2U 24 BAYS NVMe REDUNDANT NODE SINGLE EPYC 1200W HRP
Key Features
- Storage server supports single AMD EPYC™ up to 1TB DDR4
- 2U Redundant High Availability dual systems (nodes)

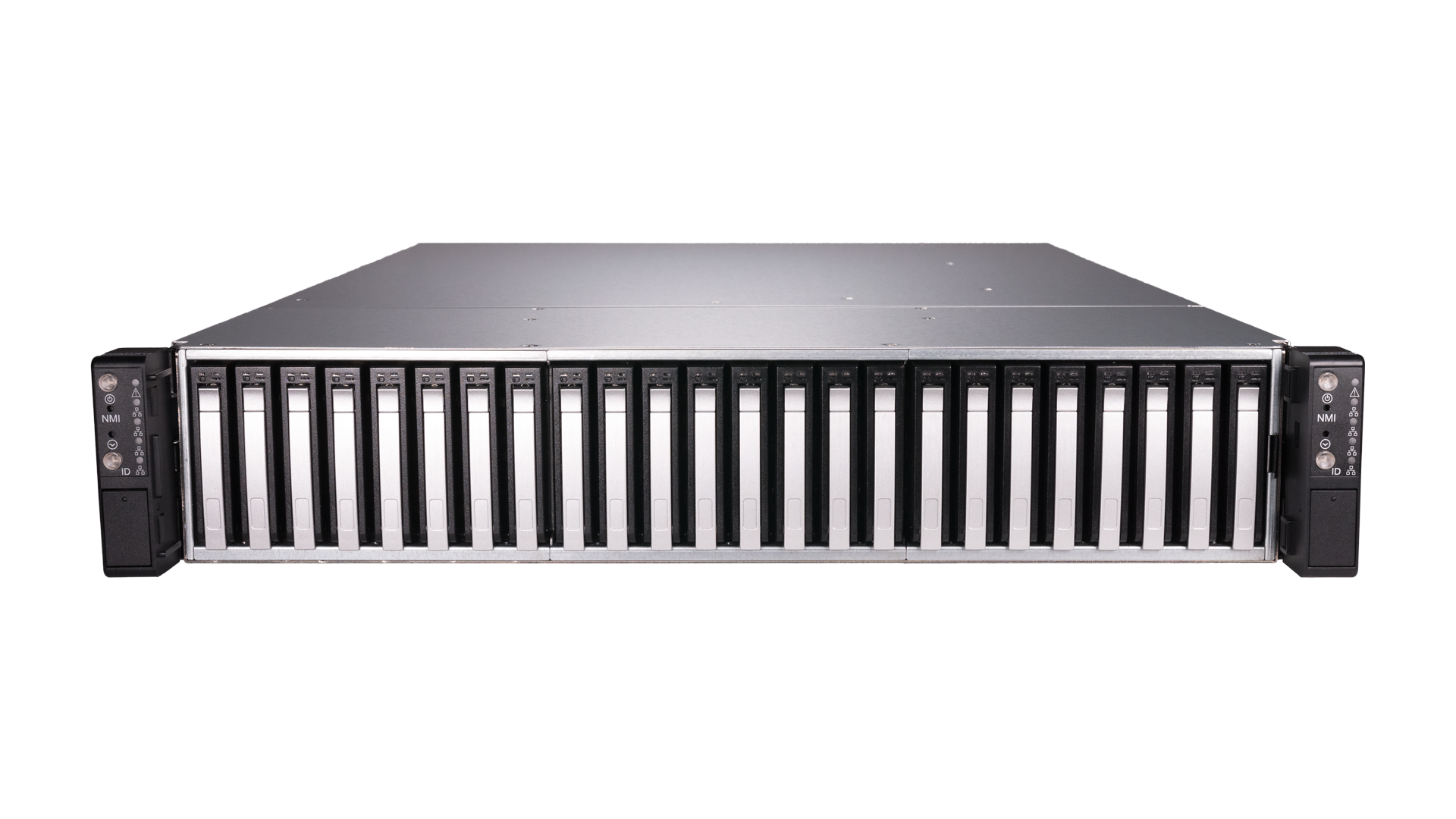

- Support high density 24 hot-swappable 2.5”-15mm NVMe U.2 SSD bays
- Support redundancy heartbeat through optional GbE and PCIe x 16 NTB
System
| Processor | Each Node: Supports single socket AMD EPYC™ up to 180W TDP socket SP3 |
|---|---|
| System Memory | Each Node: Supports up to 16x DIMMs DDR4 RDIMM/L 2400 |
| Network | Each Node: 2x GbE ports, 1x GbE dedicated for IPMI |
| Drive Bays | 24x 2.5” 15mm hot-swap U.2 NVMe drive bays each node has 2x internal 7mm SATA drives for OS |
| Supported OS | Windows 2012 R2 Windows 2016 Server RHEL 7.4 SLES 12 SP2 Ubuntu 17.04 For other OS, please contact us |
| Cooling | Each node: 5x 40mm fans |
| Other Features | Dedicated GbE for IPMI 2.0 |
I/O
| Front I/O | Power On/Off switch & LED Locate switch & LED Reset switch System warning LED 4x LAN LED |
|---|
Power
| Power | 1+1 1200W AC/DC or -48VDC/DC high efficiency 80plus Platinum redundant power supplies |
|---|
Environment
| Operating Temperature | 0°C ~ 35°C |
|---|---|
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
| HTS Code | 8473 30 5100 |
| ECCN | 4A994 |
| Compliance | CE, FCC Class A, RoHS 6/6 compliant |
Physical
| Dimensions (W x H x D) | System: 30”x19”x3.5” (LxWxH) Packaging: 37”x 25”x12”(LxWxH) |
|---|---|
| Weights | Net Weight: 55lbs w/o Hard Drives Gross Weight: 77lbs |
Downloads
| Data Sheet | DS-DSS224N-UN |
|---|
