DSS224J-S3
durastreams
JBOD

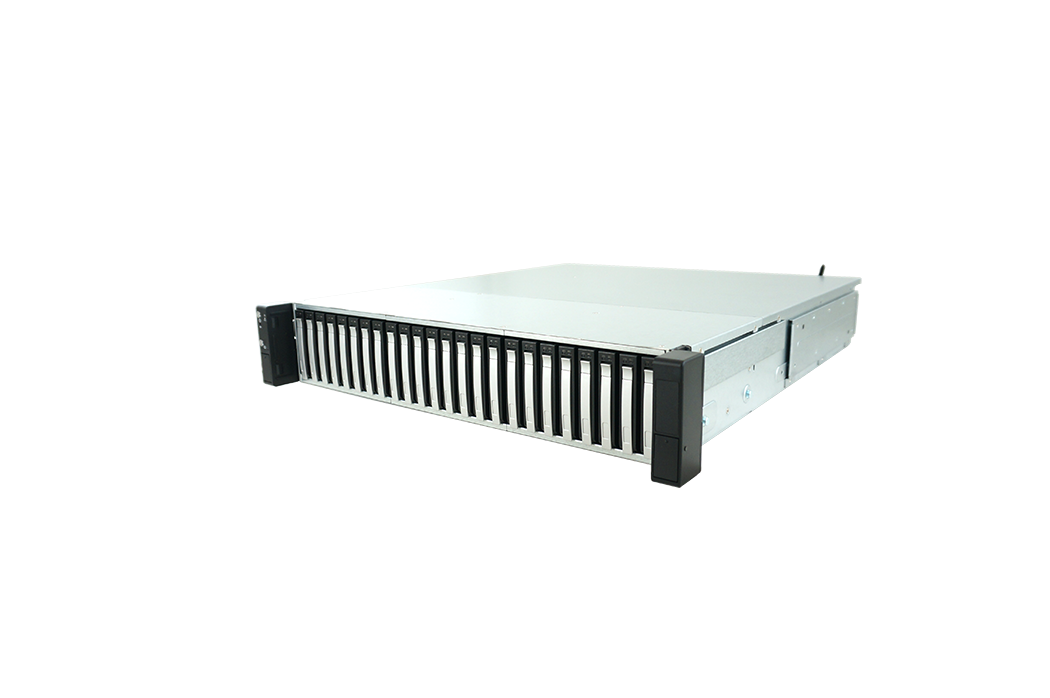

DSS224J-S3 2U 24 BAYS 2.5" HDD/SSD 12G SAS DUAL EXPANDER JBOD 500W HRP
Key Features

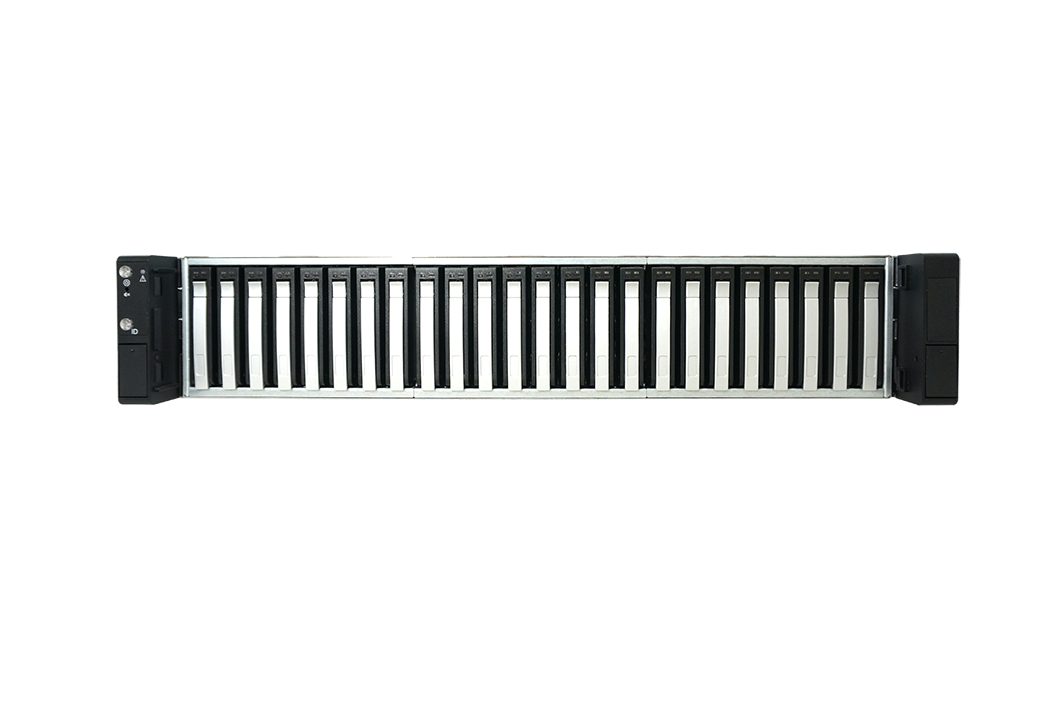

- 2U with 24x SFF 2.5” 12G SAS host-swap bays for HDD or SSD
- Each Expander has 3x SFF8644 12G SAS wide ports
- Dual 12G SAS Expander modules for High Availability environment
- High efficiency 80Plus Platinum redundant power supplies
- Management NIC port with remote access GUI
System
| Expander | Single or Dual LSI 12G SAS Expander |
|---|---|
| Controller Support | 12Gb/s Host-based RAID Controller cards and HBAs with external connectivity |
| Storage | 24x 2.5" 12G SAS dual-ported Tray-less drive bays |
| Enclosure Management | HDD Status/Indentifier LEDs, Smart Fan, Thermal Monitor, HDD Monitor, Voltage Monitor, Inband SES 2 support |
| Cooling | Redundant dual 80mm exhaust fan in PSU modules with Smart Fan control for optimized cooling |
I/O

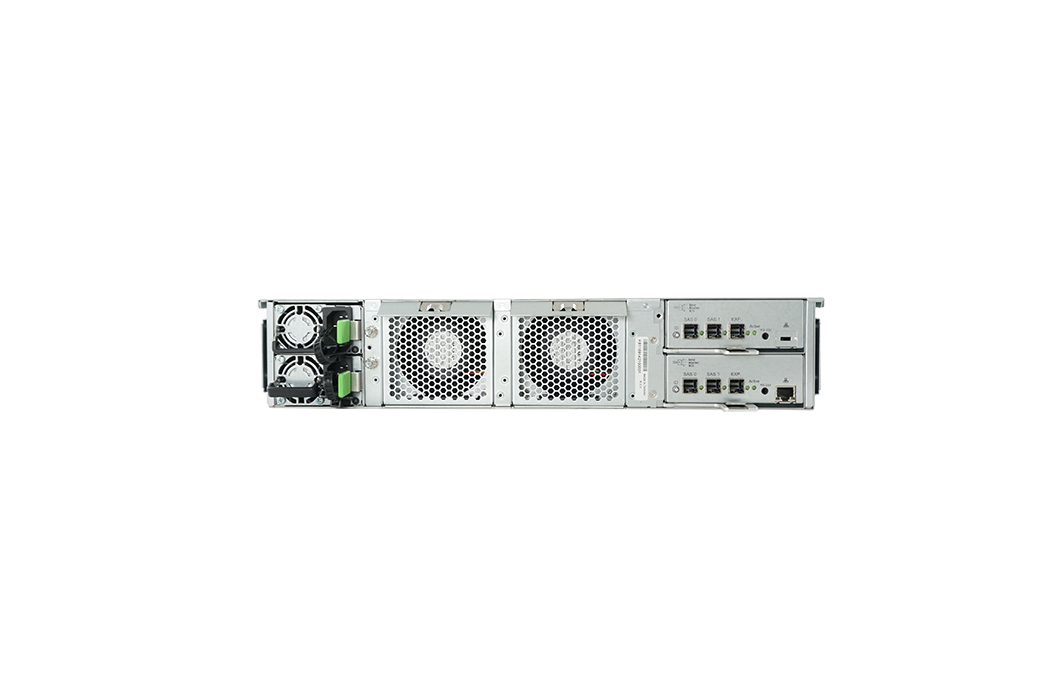

| I/O | 2x SFF8644 12G SAS lanes Uplink host / expander 1x SFF8644 12G SAS lanes Downlink / expander 1x RJ45 for remote management / expander 1x mini Jack for RS232 management |
|---|
Environment
| Operating Temperature | 0°C ~ 35°C |
|---|---|
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
| HTS Code | 8473 30 5100 |
| ECCN | 4A994 |
| Compliance | CE, FCC Class A, RoHS 6/6 compliant |
Physical
| Dimensions (W x H x D) | System: 20.5"x19"x3.5" (LxWxH) Packaging: 33"x 25"x11.5"(LxWxH) |
|---|---|
| Weights | 40lbs w/o Drives |
Downloads
| Data Sheet | DS_DSS224J-S3_E |
|---|---|
| BIOS | JNM-2.0.5-BIOS |
| Firmware | fwsas3x36-Firmware |
| MFG file | mfgsas3x36R-MFG-File |
| AVL | Premio_DSS224J-S3-AVL |
| Install Guide | DSS224J-S3-Quick-Guide-v1 |
