DSS212S-UN
durastreams
amd

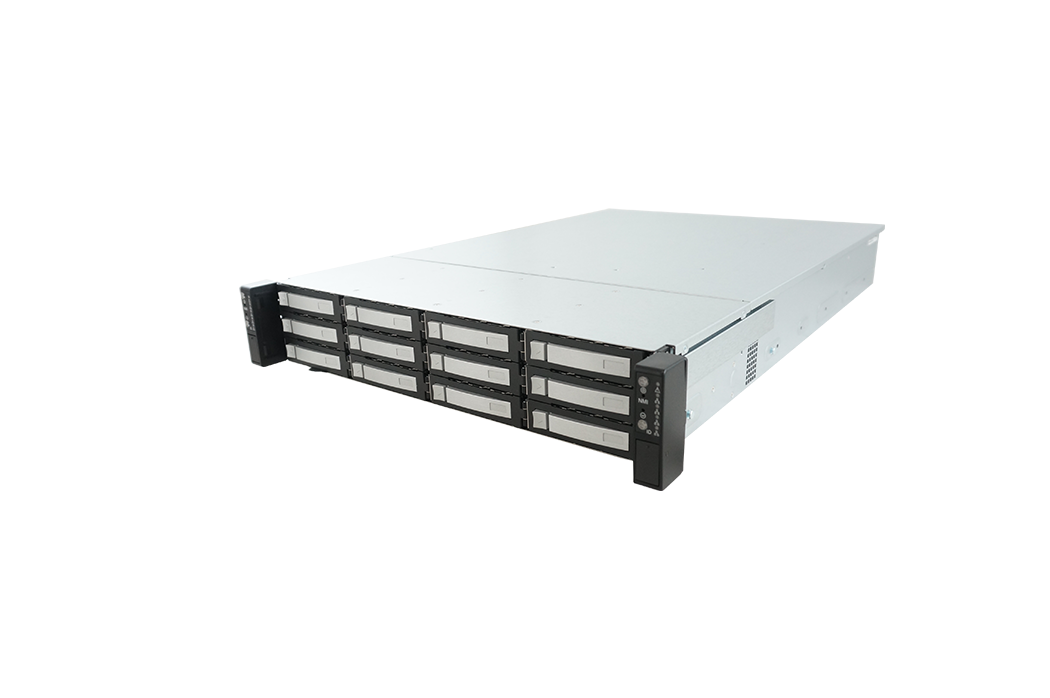

DSS212S-UN 2U 12 BAYS 3.5" HDD 12G SAS REDUNDANT NODE SINGLE EPYC 1200W HRP
Key Features
- 2U with 12x 3.5″ 12 Gbps SAS hot-swap HDD bays
- Five 40mm fan modules per motherboard module

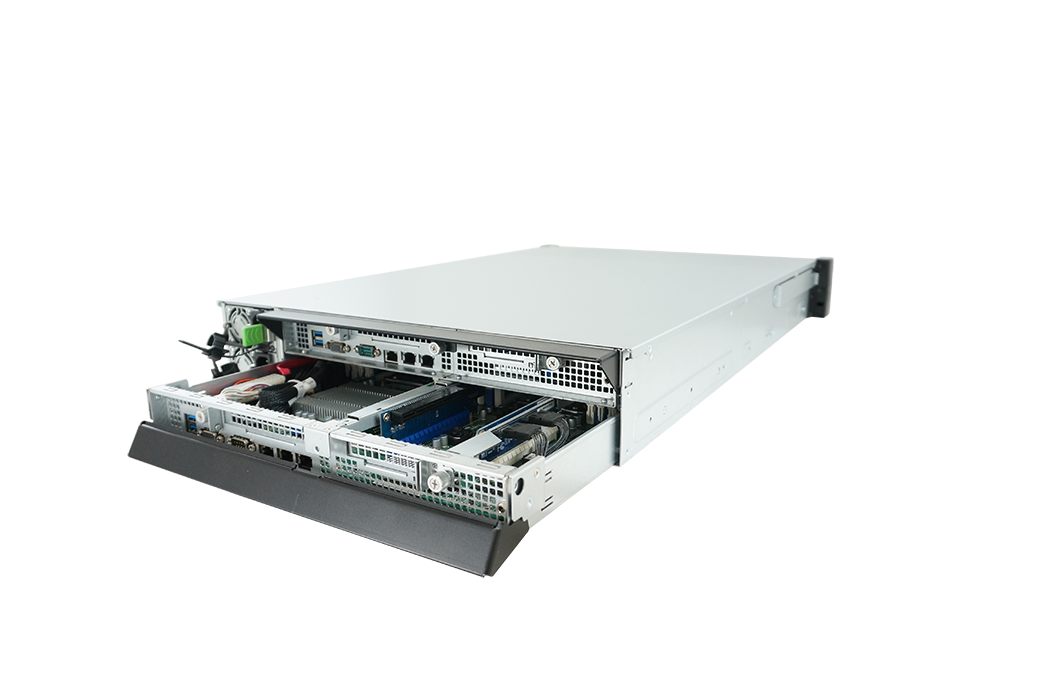

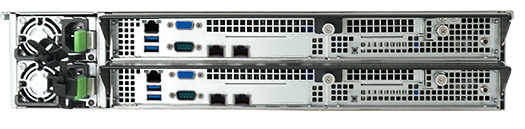

- Supports two hot-swap MB modules each with AMD EPYC TM™ UP server boards in one system as unified redundant controllers
- HA redundant cluster-in-a-box with PCIe NTB and GbE Heartbeat
System
| Processor | Each Node: Supports single socket AMD EPYC™ up to 180W TDP socket SP3 |
|---|---|
| System Memory | Each Node: Supports up to 16x DIMM DDR4 RDIMM/L 2400 |
| Storage | Each Node: 36 ports 12G SAS Expander with 3 SFF8643 Connectors |
| Drive Bays | 12 hot-swap 3.5" 12G/6G SAS/SATA drive bay; Each node: 2x internal 2.5" 7mm for OS drive bays |
| Cooling | Each node: 5x 40mm fans |
I/O
| Expansion | Each Node: 2x PCI-E3.0 x 16; 1x PCI-E3.0x16 OCP 2.0 |
|---|
Environment
| Operating Temperature | 0°C ~ 35°C |
|---|---|
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
| HTS Code | 8473 30 5100 |
| ECCN | 4A994 |
| Compliance | CE, FCC Class A, RoHS 6/6 compliant |
Physical
| Dimensions (W x H x D) | System: 26.5"x19"x3.5" (LxWxH) Packaging: 37“x25.2"x13.8: (LxWxH) |
|---|---|
| Weights | Net Weight: 50lbs without Hard Drives Gross Weight: 68lbs |
Downloads
| Data Sheet | DS_DSS212S-UN_E |
|---|---|
| BIOS | S8026_BMC S8026_v100 |
| AVL | DSS212SAVL |
| Product Brief | PB_DuraStreams_AMD |
| Install Guide | DSS212S-UN-Quick-Guide-v1 |
