DSS212S-U5
durastreams
intel
DSS212S-U5 2U 12 BAY 3.5" HDD 12G SAS REDUNDANT NODE SINGLE XEON SP
Key Features

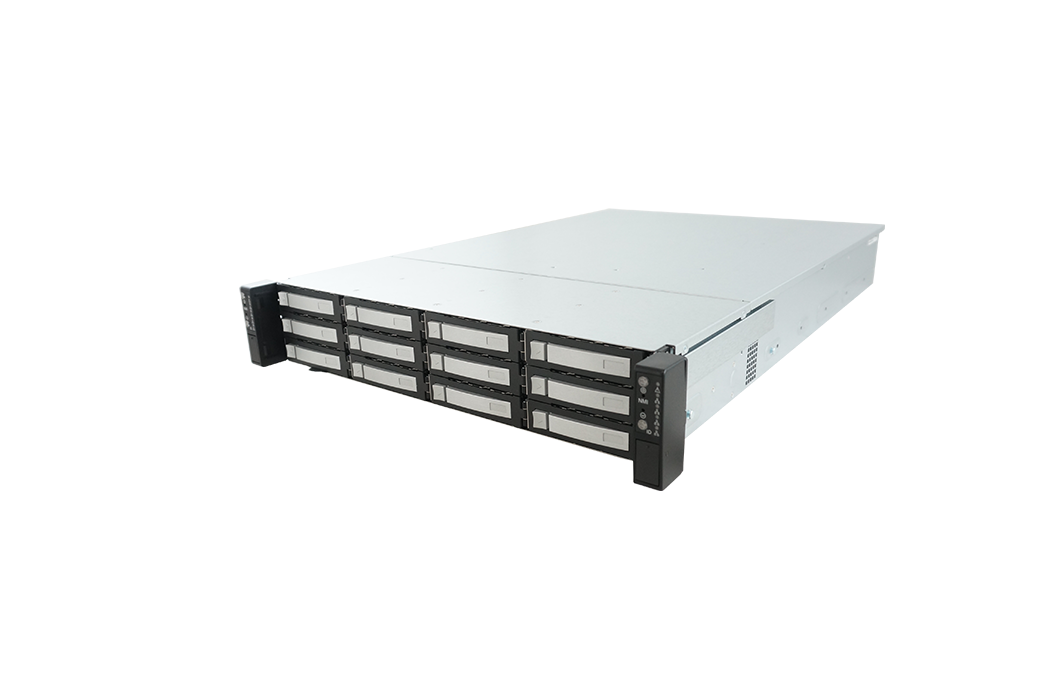

- 2U with 12x 3.5″ 12 Gbps SAS hot-swap HDD bays
- Five 40mm fan modules per motherboard module

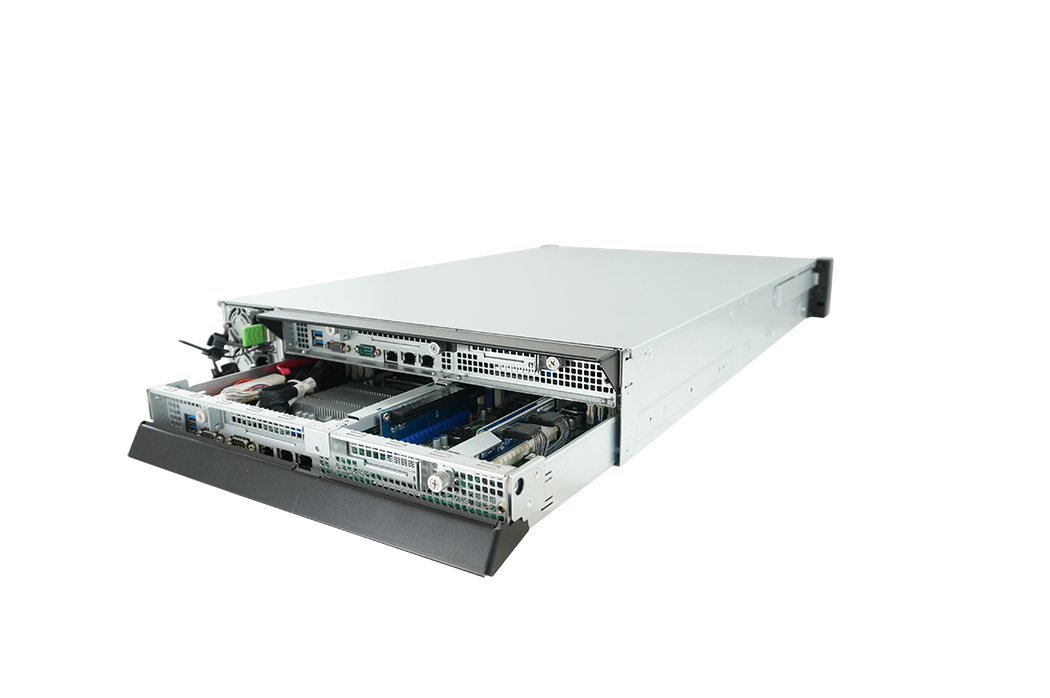

- Supports two hot-swap MB modules each with Xeon DP server boards in one system as unified redundant controllers
- HA Redundant Cluster-in-a-Box solution with PCIe NTB and GbE heartbeat
System
| Processor | Each Node: Supports Single Socket Intel® Xeon® P Skylake up to 205W TDP socket LGA3647 |
|---|---|
| System Chipset | Intel C622 chipset |
| System Memory | Each Node: Supports up to 6x DIMMs DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 |
| Storage | Each node: 36 ports 12G SAS Expander with 3 SFF8643 Connectors |
| Drive Bays | 12 hot-swap 3.5" 12G/6G SAS/SATA drive bay; Each node: 2x internal 2.5" 7mm for OS drive bays |
| Cooling | Each node: 5x 40 mm fans |
I/O
| Expansion | Each Node: 1x PCI-E 3.0 x8; 2x PCI-E3.0 x16; 1x Broadcom LSI3008 (Optional) |
|---|
Environment
| Operating Temperature | 0°C ~ 35°C |
|---|---|
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
| HTS Code | 8473 30 5100 |
| ECCN | 4A994 |
| Compliance | CE, FCC Class A, RoHS 6/6 compliant |
Physical
| Dimensions (W x H x D) | System: 26.5"x19"x3.5" (LxWxH) Packaging: 37"x25.2"x13.8"(LxWxH |
|---|---|
| Weights | Net Weight 50lbs w/o Hard Drives; Gross Weight: 68 |
Downloads
| Data Sheet | DS_DSS212S-U5_E |
|---|---|
| BIOS | X11SPW7_606 |
| Firmware | SMT_X11AST2500_122 |
| AVL | DSS212S-U5-AVL |
| Product Brief | PB_DuraStreams_Intel |
